150222J630BB by cornell dubilier/mallory

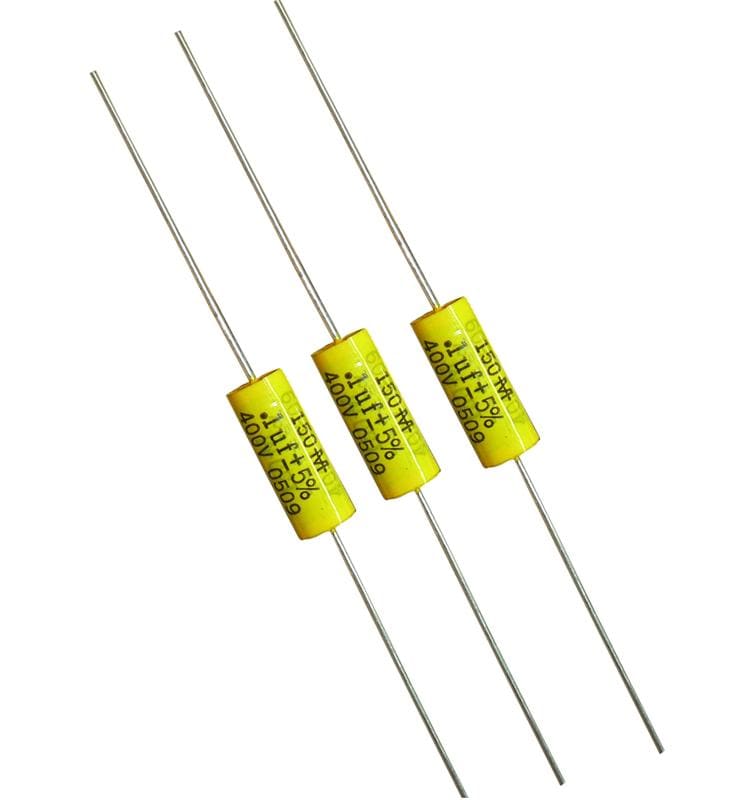

Image is representational - see mfr. specs

150222J630BB

Cornell Dubilier/Mallory

Metalized Polyester Capacitor - Axial - Non Inductive - 0.0022uF ±5% - 630VDC - 0.236 in Dia x 0.65 in ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 150222J630BB is a Type 150 axial leaded metallized polyester capacitor designed for general-purpose applications including blocking, bypass, decoupling, smoothing, and timing circuits. This non-inductive capacitor features a rated voltage of 630 Vdc with a capacitance value of 0.0022 µF and ±5% tolerance (J designation). The device has a body diameter of 0.236 inches (6.0 mm), lead diameter of 0.024 inches (0.6 mm), and a maximum body length of 0.650 inches (16.5 mm) with tinned copper leads spaced 1.58 inches (40 ±5 mm) apart. It operates reliably over a temperature range of -55 °C to +125 °C with linear derating to 50% rated voltage at 125 °C, and features flame-retardant outer wrap meeting UL510 and epoxy end fill meeting UL94V-0. The capacitor is ideal for high-voltage applications requiring compact form factors and is available on tape and reel for automatic insertion.

Search Keywords: 150222J630BB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cornell Dubilier/Mallory
Part No:
150222J630BB
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532250060
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500
Package Type:
BAG

IN STOCK: 2,929

Can Ship immediately

Minimum Order Quantity: 25

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
25
$1.540
250
$1.015
500
$0.849
1,000
$0.830
2,500
$0.804
5,000
$0.802
7,500
$0.800
10,000 +
$0.798
Suppliers Standard Package
