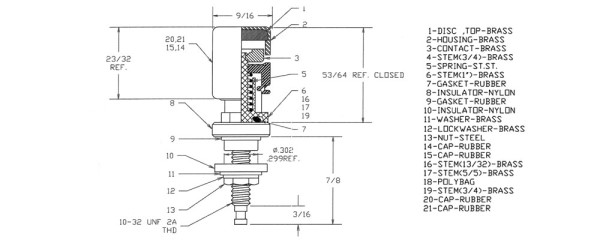

PB08NA01

Connector - Binding Post F - 1 POS - Wire - Wrap ST - Panel Mount - 1 Port ...

RoHS Compliant

DESCRIPTION

FEATURES: · Mounts in panels from 1.57 (.062) to 3.18 (.125) thick. · Complies to MIL-P-55149/8. MATERIALS: Body: Nickel plated brass “O” Rings and Cap: Silicon rubber Finish: Gold plated brass Hardware: Hex nut, Split lockwasher, Brass washer, Nylon washer, “O” Rings, Body, Cap Markings: “PB08NA01” for Black Binding Posts “PB08NA02” for Red Binding Posts RATINGS: Voltage: Hand-held testing: 30VAC/60VDC Max. Hands free testing in controlled voltage environments: 1200 WVDC Max. Operating Temperature: +115ºC (+239ºF) Max. Current: 15 Amperes

Product Highlights:

Potential Applications:

Search Keywords: PB08NA01

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Concord

Part No:

PB08NA01

RoHS:

Yes

HTS:

8536509050

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
