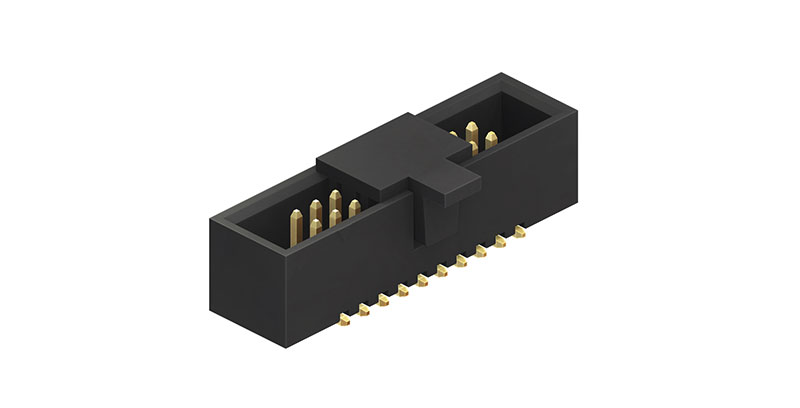

Image is representational - see mfr. specs

3220-20-0300-00

CNC Tech

The 3220-20-0300-00 is a 20-pin, 1.27mm pitch, surface-mount (SMD) box header connector. ...

Datasheet

RoHS Compliant

CARTON Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 3220-20-0300-00 is a 20-pin, surface-mount box header with a 1.27mm pitch, designed for board-to-board or wire-to-board connections. It operates with a current rating of 1.0A and a voltage rating of 50V AC/DC. The connector features gold-plated brass terminals for reliable conductivity and a maximum contact resistance of 20mΩ. Its insulator is made from black Nylon 9T (UL94V-0), ensuring high-temperature performance and flame retardancy. This component is engineered to operate in a wide temperature range from -40°C to +105°C, making it suitable for demanding industrial and commercial electronics applications.

Product Highlights:

Potential Applications:

Search Keywords: 322020030000

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

CNC Tech

Part No:

3220-20-0300-00

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694040

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
