3020-06-0300-00 by cnc tech

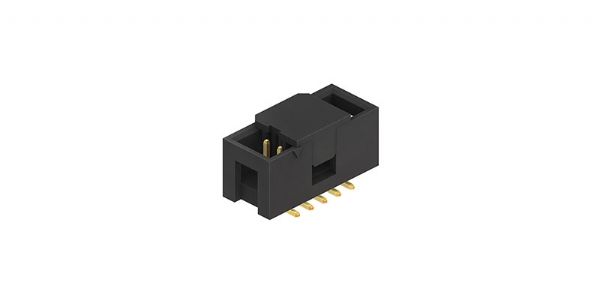

Image is representational - see manufacturer specifications
CNC Tech Authorized Distributor

3020-06-0300-00

IDC Box Header - Pitch 0.100" (2.54mm) - 6Pos Low Profile - SMT - Nylon 9T - Flash Gold ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 3020-06-0300-00 is a 2.54mm pitch box header SMD type connector designed for surface-mount PCB applications. It features a 6-position configuration with a current rating of 3.0A AC/DC and voltage rating of 250V AC/DC, making it suitable for general-purpose interconnection in industrial and consumer electronics. The connector employs brass contacts with gold plating for reliable conductivity, housed in a black Nylon 9T (UL94V-0) insulator body. Key electrical characteristics include a maximum contact resistance of 20 mO, insulation resistance of 1,000 MO minimum, and withstanding voltage of 600V AC per minute. Operating temperature range spans -40°C to +105°C, and the product is RoHS compliant. This connector is commonly used in power distribution, signal routing, and modular equipment interconnection where compact, reliable board-level connections are required.

Search Keywords: 302006030000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CNC Tech
Part No:
3020-06-0300-00
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
180
Package Type:
BOX

FREQUENTLY ASKED QUESTIONS

Is 3020-06-0300-00 RoHS compliant?

Yes, 3020-06-0300-00 is RoHS compliant.

What is the lead time for 3020-06-0300-00?

The standard lead time for 3020-06-0300-00 is approximately 20 weeks. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 2,854

Can Ship immediately

Minimum Order Quantity: 180

Multiple: 180

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
180
$0.4967
540
$0.4134
1,080
$0.3713
2,520
$0.3445
5,040
$0.3212
10,080
$0.3033
25,020
$0.2978
50,040 +
$0.2971
Supplier's Standard Package
