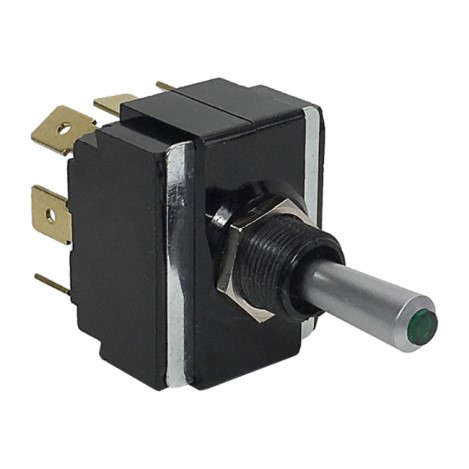

GLT-00912826
GLT-00912826
In Stock: 91
Minimum Order: 10
VIEW PRODUCT
LT-1511-601-012 by carling technologies
Image is representational - see mfr. specs

LT-1511-601-012

Carling Technologies

1-pole - ON-None-OFF - 10A/15A/15A 250VAC/125VAC/12-28VDC 3/4 HP @ 125-250VAC - Illuminated Satin Chrome Snapkap Style Toggle - .250 Tab (Q.C.) ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

LT-1511-601-012 is a single-pole illuminated toggle switch featuring a .250 Tab QC (quick-connect) termination and an On-None-Off circuit configuration. The switch is equipped with a 12-volt incandescent lamp with a red lighting sequence across all three positions, and incorporates neoprene bushing seals for dust and moisture protection. It is rated for 10A at 250VAC, 15A at 125VAC, or 15A at 12-28VDC, with a dielectric strength of 1000V between live and dead metal parts. The switch maintains an electrical life of 50,000 cycles and operates reliably across a temperature range of 0°C to 85°C. This switch is ideal for marine and transportation applications where reliable illuminated control and environmental protection are essential.

Search Keywords: LT1511601012

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
LT-1511-601-012
Alias/AKA:
GLT-00912826
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Pole Throw Configuration:
1P1T (SPST)
Switch Configuration:
OFF None ON
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Lighted Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Quick Connect
Dimension:
34.92 x 19.05 x 61.49 mm
Operating Temperature:
0 to 85 °C

IN STOCK: 91

Can Ship immediately

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
10
$15.16
30
$14.93
50
$14.72
100
$10.44
250
$8.30
500
$8.19
1,000 +
$8.14
Suppliers Standard Package
