MPI005R28LSRD12
BulginANTI VANDAL SW, SPDT, 5A, 24V/125V, RED; Available until stocks are exhausted ...
DESCRIPTION

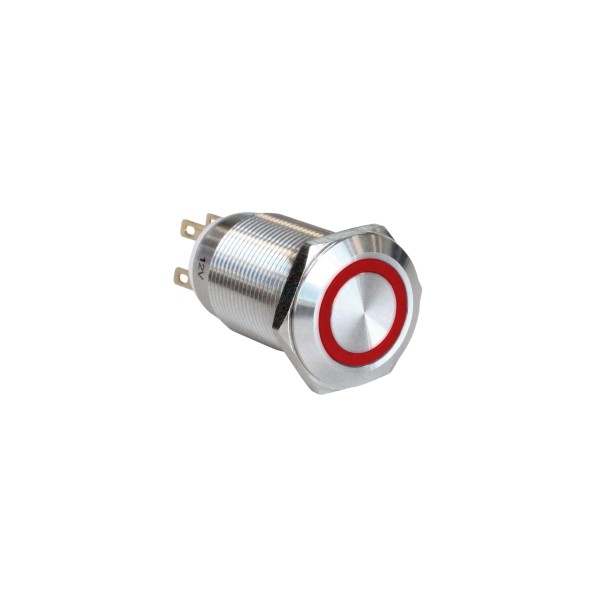

MPI005R28LSRD12 is a 19mm stainless steel illuminated vandal-resistant push button switch designed for robust industrial and public-facing applications. It features S.P.C.O (Single Pole Change-Over) switching with both momentary and latching action options, a 22mm bezel diameter, and a 19.2mm ± 0.2mm fixing hole diameter. The switch is rated for 5A @ 12VDC or 24VDC, 5A @ 125VAC, and 3A @ 250VAC, with an IP65 sealing rating (upgradeable to IP67 on request) and operates reliably over a temperature range of -25°C to +55°C. It offers exceptional durability with 1,000,000 minimum mechanical operations and 50,000 minimum electrical operations, featuring silver contacts, brass gold-plated terminations, and a polycarbonate moulding. This switch is ideal for access control systems, emergency stop buttons, and other applications requiring high reliability and vandal resistance in demanding environments.
Search Keywords: MPI005R28LSRD12
SPECIFICATIONS
IN STOCK: 77
Ships today, if you order in
MOQ for In Stock Qty: 2
MOQ for out of Stock Qty: 2
Factory Lead-Time 12 Weeks
Datasheet
