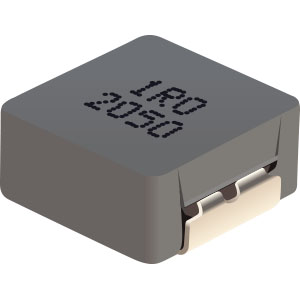

SRP8540A-R68M by bourns
Image is representational - see mfr. specs

SRP8540A-R68M

Bourns

SMD Power Inductor - 0.68uH±20% - 23A - Shielded - 8.8 x 8.4 x 3.8mm - Automotive Grade ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

SRP8540A-R68M is a shielded power inductor from Bourns' SRP8540A series designed for high-performance switching power supply and DC-DC converter applications. The inductor features a metal powder core with shielded construction that provides low radiation and low buzz noise, combined with high saturation current capability. Key electrical characteristics include an inductance of 0.68 µH at 100 kHz with ±20% tolerance, a typical DC resistance of 3.1 mO, a quality factor (Q) of 15, and a self-resonant frequency of 56 MHz. The device is rated for 23 A RMS current with a saturation current of 36 A, and operates reliably across a temperature range of -55°C to +150°C. This inductor is AEC-Q200 compliant, RoHS compliant, and halogen-free, making it suitable for automotive and industrial power management circuits where reliability and electromagnetic compatibility are essential.

Search Keywords: SRP8540AR68M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
SRP8540A-R68M
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
800
Package Type:
REEL

IN STOCK: 687

Ships today, if you order in

You may purchase all in-stock quantity of 687

Stock lot only: 687

Minimum Order Quantity: 800

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1
$0.6991
800
$0.6355
1,600
$0.6344
3,200
$0.5926
5,600
$0.5916
8,000
$0.5773
10,400
$0.5753
15,200
$0.5620
25,600 +
$0.5610
Reel Package
Log in for special pricing Click for Quote Price Match Request
