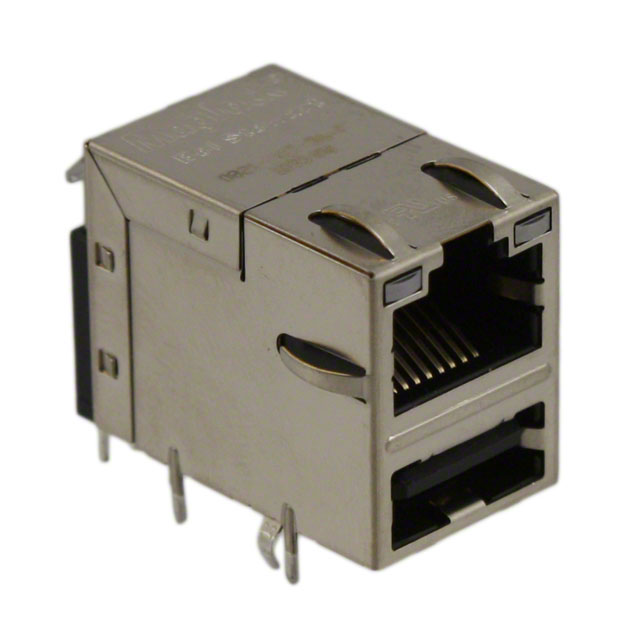

0820-1X1T-00-F by bel fuse
Image is representational - see mfr. specs

0820-1X1T-00-F

Bel Fuse

Conn RJ-45/USB F/F 8/4 POS Solder RA Thru-Hole 16 Terminal 1/1 Port Tray ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 0820-1X1T-00-F is a passive combo connector that combines RJ45 and USB connectivity in a single integrated module. The connector features a thermoplastic PBT housing with UL 94V-0 flammability rating and includes nickel-plated copper alloy metal shielding with solder-dipped ground leads. Electrical specifications include an insulation resistance of 1000 MO minimum, contact resistance of 25 mO maximum, and dielectric withstanding voltage of 750 VAC. The connector utilizes 30 micro-inch hard gold plating on contact areas and tin-coated copper wire pins with 0.018 inch diameter. Mechanical characteristics include a mating force of 35 newtons maximum and unmating force of 10 newtons minimum. This connector is ideal for applications requiring integrated network and USB connectivity in space-constrained environments, offering reliable performance with RoHS compliance and UL recognition.

Search Keywords: 08201X1T00F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bel Fuse
Part No:
0820-1X1T-00-F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 187

Can Ship immediately

Minimum Order Quantity: 24

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
24
$4.94
119
$4.72
237
$4.55
1,185
$4.37
3,555 +
$4.18
Log in for special pricing Click for Quote Price Match Request
