A-DSF-25LPIII/Z by assmann wsw components

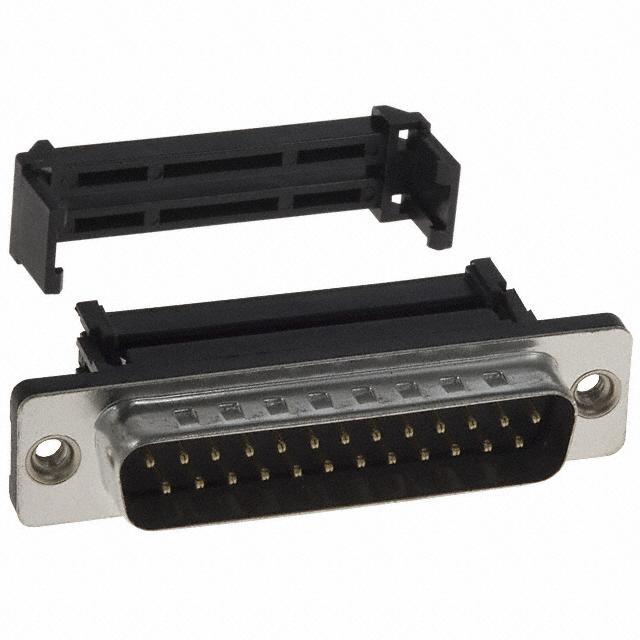

Image is representational - see manufacturer specifications
Assmann WSW Components Authorized Distributor

A-DSF-25LPIII/Z

Conn D-Subminiature PIN 25 POS IDT RA Cable Mount 25 Terminal 1 Port ...

View Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

A-DSF-25LPIII/Z is a low-profile D-SUB female connector assembly designed for flat ribbon cable applications with a 25-pin configuration. The connector features a metal housing with strain relief and is RoHS compliant, meeting environmental standards. Based on the dimensional specifications provided, the connector accommodates various pin configurations (9, 15, 25, and 37 positions) with corresponding dimensional parameters ranging from approximately 30.81 mm to 69.32 mm in length (dimension A). The assembly includes a clear hole of 3.05 mm and incorporates both insulator support and strain relief features for robust mechanical performance. This connector is commonly used in industrial control systems, data acquisition equipment, and legacy computer peripherals where reliable ribbon cable connections are required.

Search Keywords: ADSF25LPIIIZ

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Assmann WSW Components
Part No:
A-DSF-25LPIII/Z
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694051
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
48
Package Type:
TRAY
Type:
D-Subminiature
Body Orientation:
Right Angle
Mounting:
Cable Mount
Gender:
Pin
Termination Method:
IDT
Shell Size:
B
Number of Contacts:
25
Contact Plating:
N/A
Operating Temperature:
N/A

FREQUENTLY ASKED QUESTIONS

Is A-DSF-25LPIII/Z RoHS compliant?

Yes, A-DSF-25LPIII/Z is RoHS compliant.

What is the lead time for A-DSF-25LPIII/Z?

The standard lead time for A-DSF-25LPIII/Z is approximately 18 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 513

Can Ship immediately

Minimum Order Quantity: 48

Multiple: 48

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
48
$1.93
144
$1.82
288
$1.75
528
$1.68
1,008
$1.54
2,544
$1.39
5,040
$1.32
7,536 +
$1.28
Supplier's Standard Package
