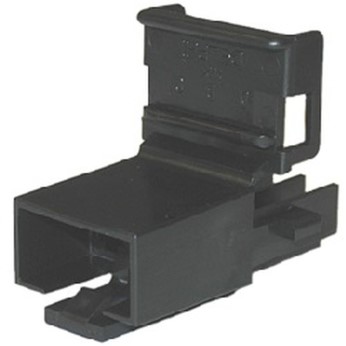

12020398 by aptiv (formerly delphi)
Image is representational - see mfr. specs

12020398

Aptiv (formerly Delphi)

Connector - 3 Contact 2.8 M/P 280 Unsealed ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

12020398 is a low-voltage automotive connector terminal designed for compact transportation connection systems (CTCS) with nickel-silicon plating and optimized for low contact mating force applications. The terminal features a contact resistance of less than 2 mO, contact mating force less than 7.0 N, and contact unmating force less than 7.0 N, ensuring reliable and repeatable mating cycles. It supports wire sizes ranging from 0.08 to 1.5 mm² with multiple plating options (Sn, Ag, Au) and is available in both sealed and unsealed configurations for male and female genders. The terminal operates at a maximum temperature of 170°C with a maximum vibration rating of 30 G and carries a maximum current of 19 A at 23°C with 1.5 mm² wire, making it suitable for automotive electrical harness applications requiring durability and consistent performance across diverse environmental conditions.

Search Keywords: 12020398

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Aptiv (formerly Delphi)
Part No:
12020398
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538900100
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
800

IN STOCK: 4,800

Can Ship immediately

Minimum Order Quantity: 800

Multiple: 800

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
800
$0.2667
1,600
$0.2640
3,200
$0.2615
5,600
$0.2602
8,000
$0.2589
25,600 +
$0.2576
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
