Q8R1CXXB24E by apem inc.

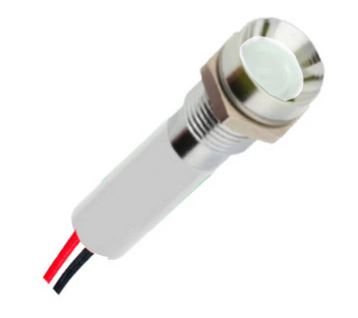

Image is representational - see manufacturer specifications
APEM Inc. Authorized Distributor

Q8R1CXXB24E

Panel Mount LED Indicator - 8mm - Blue - 24VDC @ 20mA - Recessed - Bright Chrome Bezel - Solder Lugs/Fastons - IP67 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

Q8R1CXXB24E is an Ø8 mm panel mount LED indicator from the Q8 series designed for industrial signaling and status indication. The indicator features a threaded M8x0.75 mounting interface and is available in multiple bezel styles (prominent, recessed, and flush) with various termination options including solder lugs, fastons, pins, and wire leads (200 mm ± 10 mm). It operates with a maximum reverse voltage of 5 V, a viewing angle of 30–100° depending on the model, and offers an IP67 sealing option per EN60529 for enhanced environmental protection. The product is rated for a life expectancy of 100,000 hours and operates reliably across a temperature range of -40°C to +85°C (rear epoxy body), with a maximum panel thickness of 7 mm and mounting torque of 20 to 25 cNm. These indicators are commonly used in control panels, machinery, and industrial equipment where durable, visible status indication is required.

Search Keywords: Q8R1CXXB24E

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
APEM Inc.
Part No:
Q8R1CXXB24E
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8539520091
COO:
GB
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Color:
Blue
Dimension:
34.75 x 11.54 x 10 mm

FREQUENTLY ASKED QUESTIONS

What replaces Q8R1CXXB24E?

The recommended replacement for Q8R1CXXB24E is Q8R1CXXB24 from APEM Inc., available from Master Electronics.

Is Q8R1CXXB24E RoHS compliant?

Yes, Q8R1CXXB24E is RoHS compliant.

What is the lead time for Q8R1CXXB24E?

The standard lead time for Q8R1CXXB24E is approximately 23 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 50   can ship 12/28/26

Minimum Order Quantity: 5

Factory Lead-Time 23 Weeks

Price (USD)

Qty
Unit Price
5
$14.68
25
$13.74
50
$11.39
100
$9.51
250
$9.12
500
$8.20
1,000 +
$6.92
