Q8F3CXXR28E by apem inc.

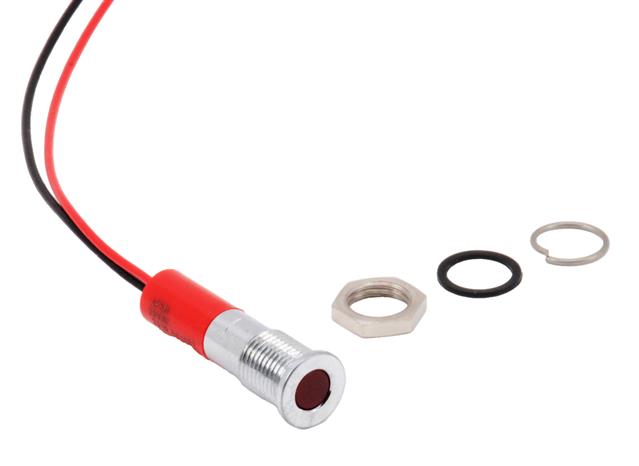

Image is representational - see manufacturer specifications
APEM Inc. Authorized Distributor

Q8F3CXXR28E

Panel Mount LED Indicator - 8mm - Red - 28VDC @ 20mA - Flush - Bright Chrome Bezel - Wires - IP67 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

Q8F3CXXR28E is an Ø8 mm panel mount LED indicator from the Q8 series designed for visual status indication in industrial and electronic applications. The product features a rear epoxy body construction with pin termination, M8x0.75 thread specification, and operates over a temperature range of -40°C to +85°C, ensuring reliable performance in demanding environments. It incorporates a 5 mm colored diffused epoxy lens or water clear super bright LED, with a viewing angle of 30–100° depending on the specific model configuration. The indicator has a maximum reverse voltage rating of 5 V, an insulation resistance of 4,000 MO at 500 VDC, and a life expectancy of 100,000 hours. With IP67 sealing capability and a maximum panel thickness of 7 mm, this LED indicator is well-suited for control panels, machinery status displays, and equipment monitoring systems where durability and long-term reliability are essential.

Search Keywords: Q8F3CXXR28E

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
APEM Inc.
Part No:
Q8F3CXXR28E
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8539520091
COO:
GB
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25

FREQUENTLY ASKED QUESTIONS

Is Q8F3CXXR28E RoHS compliant?

Yes, Q8F3CXXR28E is RoHS compliant.

What is the lead time for Q8F3CXXR28E?

The standard lead time for Q8F3CXXR28E is approximately 16 days. In-stock quantities ship from Master Electronics.

IN STOCK: 3

Can Ship immediately

Buy all 3 in-stock or the regular minimum order quantity of 25

Stock lot only: 3

Minimum Order Quantity: 25

Multiple: 25

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$8.459
25
$7.690
50
$7.580
100
$6.450
250
$6.330
500
$5.730
1,000
$4.970
2,500 +
$4.670
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
