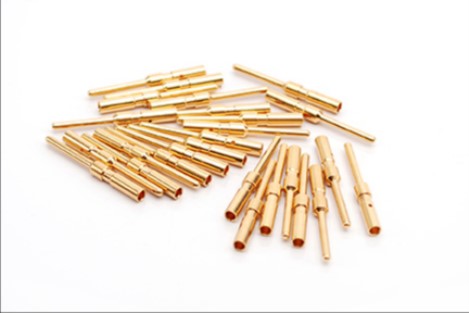

Image is representational - see mfr. specs

MP16M23G10

Amphenol Sine Systems

Pin Contact, Machined, Size 16, Gold 10µ", Wire Range .75 -.1.5mm², 18-16 AWG ...

Datasheet

RoHS Compliant

BAG Packaging

Certificate of Compliance Guarantee

DESCRIPTION

MP16M23G10 is a male pin contact for the ecomate® family of circular multiway connectors, specifically designed for Size 16 (1.6mm) contact applications rated at 13A. This contact is engineered to accommodate wire gauges ranging from 18-16 AWG (0.75-1.50 mm²) and is compatible with end caps for secure termination. The connector system meets rigorous industrial standards including UL 94 V-0 flammability rating, 1500V/2000V test voltage rating, and demonstrates excellent fluid resistance to gas, oil, mineral oil, acid bath, and basic bath environments. With an insulation resistance of 5000 megohms and thermal shock resistance verified through 20 test cycles from -55°C to 125°C with no cracking, chipping, or leaking, this contact is ideal for factory automation, industrial equipment, heavy-duty transportation, and entertainment/lighting applications requiring reliable high-density interconnections.

Product Highlights:

Potential Applications:

Search Keywords: MP16M23G10

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Amphenol Sine Systems

Part No:

MP16M23G10

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538908140

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
