MB1JJN0800 by amphenol sine systems

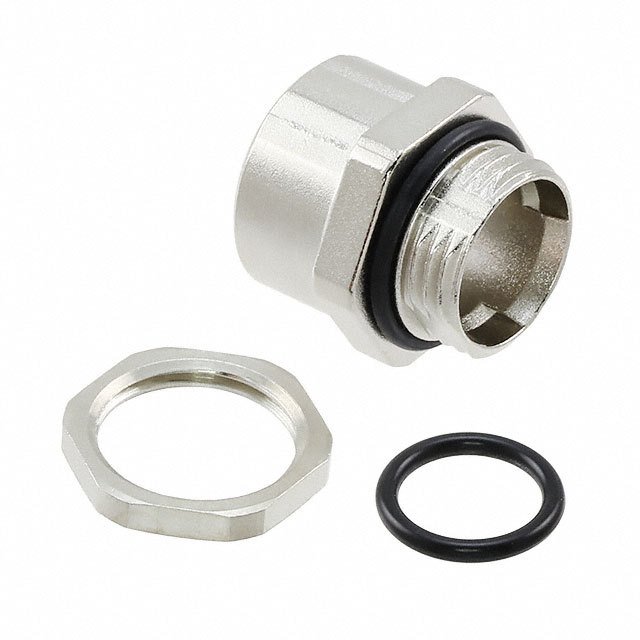

Image is representational - see mfr. specs

MB1JJN0800

Amphenol Sine Systems

8 position receptacle extension connector, male ...

Datasheet
RoHS Compliant
EACH Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

MB1JJN0800 is an M23 Elite Checkmate circular DIN connector designed for demanding industrial applications requiring robust signal and power transmission. The connector features a quick-locking Checkmate coupling system with distinctive alignment arrows and lock/unlock symbols, available in multiple configurations including power (6, 8, 9 positions), signal (12, 16, 17 positions), and hybrid (8, 15 positions) variants. Key technical specifications include a maximum current rating of 30A for power contacts, maximum voltage of 630V AC/850V DC, operating temperature range of -20°C to +130°C, and zinc die-cast nickel-plated housing with 360° shielding. The connector has been vibration and shock tested up to 20g and 50g respectively in three axes, features a cable clamping range of 4.5mm to 17mm, and includes a 330° rotatable base design for 90° receptacles. This connector is ideal for servo drive encoder feedback, packaging, robotic, printing, machine tool, medical, and automation environments where compact, reliable control signal transmission or power delivery is required.

Search Keywords: MB1JJN0800

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol Sine Systems
Part No:
MB1JJN0800
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Package Type:
EACH

IN STOCK: 77

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
5
$8.73
25
$8.19
50
$7.95
200
$7.48
400
$7.25
600
$6.49
1,000 +
$5.68
