SMP-MSLD-PCT-10 by amphenol rf

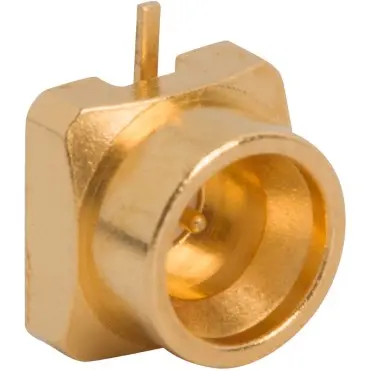

Image is representational - see manufacturer specifications
Amphenol RF Authorized Distributor

SMP-MSLD-PCT-10

RF Connector SMP Straight PCB Jack Limited Detent Surface Mount with Thru-Hole Contact 50 Ohm ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The SMP-MSLD-PCT-10 by AMPHENOL RF is a high-quality RF connector that offers exceptional performance and reliability. This RF connector is designed with a straight PCB jack configuration, making it suitable for a wide range of applications. The limited detent feature ensures a secure connection while allowing for easy mating and unmating. With a surface mount design and a thru-hole contact, this connector ensures excellent electrical performance and stability. With an impedance of 50 Ohm, this RF connector is ideal for demanding RF applications. Trust AMPHENOL RF for top-of-the-line connectivity solutions that meet and exceed your requirements.

Search Keywords: SMPMSLDPCT10

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
SMP-MSLD-PCT-10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
SMP
Impedance:
50
Operating Frequency:
0 to 26.5 Hz to GHz
Gender:
Jack
Mounting:
Through Hole
Body Orientation:
Straight
Terminate To:
PCB
Termination Method:
Solder
Operating Temperature:
-65 to 165 °C
Dimension:
5 x 5 x 4.09 mm

FREQUENTLY ASKED QUESTIONS

Is SMP-MSLD-PCT-10 RoHS compliant?

Yes, SMP-MSLD-PCT-10 is RoHS compliant.

What is the lead time for SMP-MSLD-PCT-10?

The standard lead time for SMP-MSLD-PCT-10 is approximately 14 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 1,422

Can Ship immediately

Manufacturer Stock: 1   can ship 10/19/26

Minimum Order Quantity: 5

Factory Lead-Time 14 Weeks can ship 1/11/27

Price (USD)

Qty
Unit Price
5
$6.96
25
$5.79
50
$5.46
100
$5.17
250
$4.76
500
$4.41
1,000
$4.37
2,500 +
$4.36
Log in for special pricing
