34-1037 by amphenol rf

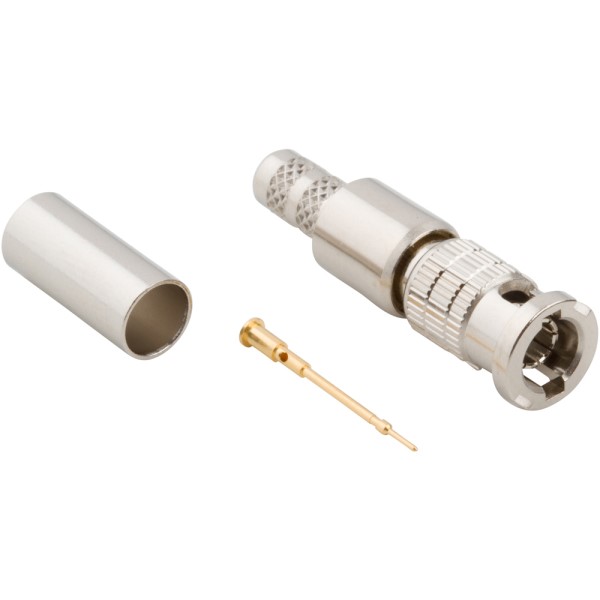

Image is representational - see mfr. specs

34-1037

Amphenol RF

Conn HD-BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Individual ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

34-1037 is an HD-BNC series straight plug connector designed for use with B1855 coaxial cable. It features a 75 ohm impedance with a frequency range from DC to 4 GHz and a return loss of 30 dB minimum at 3 GHz. The connector is constructed with a brass body and bayonet sleeve with nickel plating, BeCu outer contact with nickel plating, phosphor bronze contact with gold plating, and PTFE insulator. It offers a dielectric withstanding voltage of 1000 VRMS minimum and insulation resistance of 10,000 MO minimum. With a durability rating of 500 cycles minimum and an operating temperature range of -65°C to +165°C, this connector is suitable for high-density broadcast, video, and telecommunications applications requiring reliable RF performance.

Search Keywords: 341037

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
34-1037
Alias/AKA:
034-1037
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
HD-BNC
Impedance:
75 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
PL
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
-65 to 165 °C
Dimension:
32.64 mm

IN STOCK: 58

Can Ship immediately

Manufacturer Stock: 310   can ship 6/26/26

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 25

Factory Lead-Time 13 Weeks can ship 9/10/26

Price (USD)

Qty
Unit Price
5
$17.00
10
$16.96
25
$16.92
50
$12.69
75
$11.84
100 +
$11.61
