112412

BNC Connector - 50 Ohms - Jack - R/A - Thru-hole - Bulkhead Rear Mount - No Mtg Hardware ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 112412 is a BNC right-angle PCB mount receptacle jack designed for 50-ohm RF applications with a frequency range of 0 to 1 GHz. It features a robust construction with a zinc alloy connector body (nickel-plated), phosphorus bronze center contact (gold-plated), and PBT glass-fiber reinforced housing (UL 94 V-0 rated), ensuring excellent electrical performance and durability. The connector operates at up to 500 volts RMS with a dielectric withstanding voltage of 1500 volts RMS, contact resistance of 3.0 milliohms maximum, and insulation resistance of 5000 megaohms minimum, while maintaining mechanical reliability through 500 mating/unmating cycles. With an operating temperature range of -65°C to +165°C and RoHS compliance, this connector is ideal for RF signal transmission in test equipment, communications systems, and industrial instrumentation where reliable high-frequency connections are required.

Search Keywords: 112412

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
112412
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
BNC
Impedance:
50
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Jack
Mounting:
Through Hole
Body Orientation:
Right Angle
Terminate To:
PCB
Termination Method:
Solder
Operating Temperature:
N/A
Dimension:
14.5 x 34.7 x 13.1 mm

FREQUENTLY ASKED QUESTIONS

Is 112412 RoHS compliant?

Yes, 112412 is RoHS compliant.

What is the lead time for 112412?

The standard lead time for 112412 is approximately 14 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 388

Can Ship immediately

Manufacturer Stock: 671   can ship 10/12/26

Minimum Order Quantity: 10

Factory Lead-Time 14 Weeks can ship 1/4/27

Price (USD)

Qty
Unit Price
10
$7.18
50
$5.93
100
$5.74
250
$5.56
500
$5.12
1,000
$4.44
2,500
$4.43
5,000 +
$4.42
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

031-5652

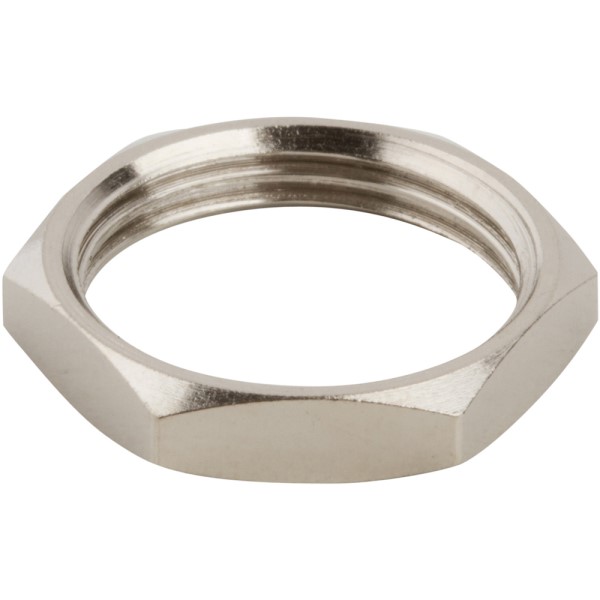

Hex Nut, Chamfered - Brass - Nickel-plated - 14.2mm D Flat x 2.88mm TH - 1/2-28UNEF-2B

031-5653

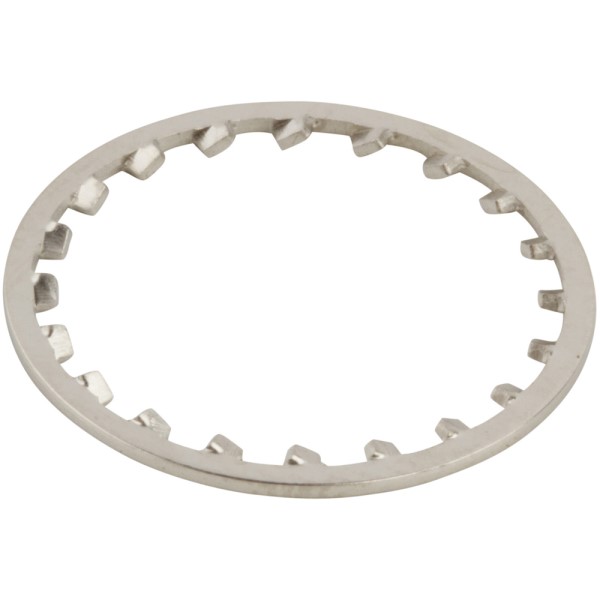

Lockwasher, Internal Tooth - Phosphor-Bronze - Nickel-plated - 13mm ID
