031-335-RFX by amphenol rf

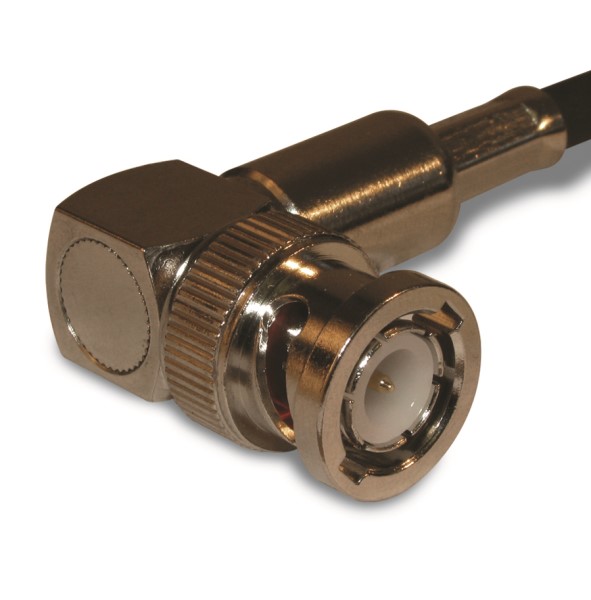

Image is representational - see mfr. specs

031-335-RFX

Amphenol RF

RF Connector BNC Right Angle Crimp Plug for RG-58 50 Ohm ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 031-335-RFX is a BNC angle crimp plug connector designed for RF cable termination in commercial-grade applications. It features a nickel-plated brass body with gold-plated contacts, utilizing crimp termination for both the body and center contact to ensure reliable electrical connections. The connector is rated for 50 O impedance and supports cable group C (RG-58, 58A, 58C, 141, 303, LMR195, and equivalent cables). With a 2-stud bayonet lock coupling mechanism, the connector provides quick connect/disconnect capability with a coupling torque range of 0.6 to 2.5 in-lbs and a minimum coupling nut retention force of 101 lbs. The connector operates across a temperature range of -65°C to +165°C and meets MIL-STD-202 environmental standards for thermal shock, moisture resistance, corrosion, vibration, mechanical shock, and altitude. This angle crimp plug is ideal for miniature RF applications requiring reliable, repeatable connections in test equipment, communications systems, and instrumentation.

Search Keywords: 031335RFX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
031-335-RFX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Plug
Mounting:
Cable Mount
Body Orientation:
Right Angle
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
-65 to 165 °C
Dimension:
27.2 x 42.5 x 14.5 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 189

Can Ship immediately

Manufacturer Stock: 1   can ship 6/22/26

Minimum Order Quantity: 5

Factory Lead-Time 13 Weeks can ship 9/7/26

Price (USD)

Qty
Unit Price
5
$6.14
25
$5.86
50
$5.74
100
$5.63
250
$5.40
500
$4.58
1,000 +
$4.02
