000-36875 by amphenol rf

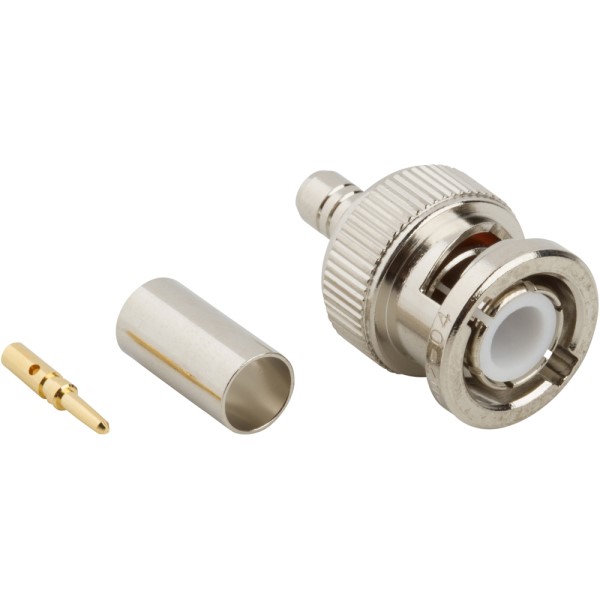

Image is representational - see mfr. specs

000-36875

Amphenol RF

RF Connector BNC Straight Crimp Plug for RG-142/U RG-223 50 Ohm ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Amphenol 36875 is a 3-piece BNC crimp plug connector engineered for reliable terminations. It is specifically designed for use with Plenum 58 RG-/U type coaxial cables. This connector requires a hex crimp size of .068 inches for the contact and .213 inches for the outer ferrule. Assembly is performed using the CTL-1 series tool with the 227-1221-11 die set, following the specified cable stripping dimensions. The 36875 provides a durable and secure connection for RF applications in environments requiring plenum-rated cabling.

Search Keywords: 00036875

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
000-36875
Alias/AKA:
36875
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 1 Hz to GHz
Gender:
Plug
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
-65 to 165 °C
Dimension:
23.85 x 14.5 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 1,000

Ships today, if you order in

Manufacturer Stock: 2,263   can ship 5/4/26

Minimum Order Quantity: 5

Factory Lead-Time 13 Weeks can ship 7/22/26

Qty
Unit Price
5
$11.49
25
$9.88
50
$9.77
100
$7.44
250
$7.26
500
$6.28
1,000 +
$5.32
Log in for special pricing Click for Quote Price Match Request
