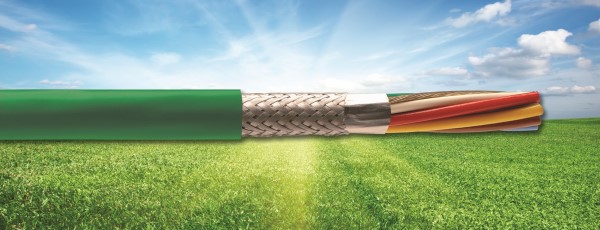

Image is representational - see mfr. specs

79012-SLATE-100

Name: 79012-SLATE-100
Brand: Alpha Wire
SKU: 45664745
Price: 936.34 USD
Availability: InStock

The 79012-SL005 is a flexible, 4-conductor, 18 AWG cable featuring halogen-free MPPE insulation and jacket for use in various electrical applications. ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 79012-SL005 is a multi-conductor cable from Alpha Wire's EcoFlex series, built with four 18 AWG tinned copper conductors. Constructed with modified polyphenylene ether (MPPE) for both the insulation and the slate-colored outer jacket, this cable offers excellent flexibility and is halogen-free. It is rated for 600 VRMS and operates over a temperature range of -40°C to 105°C in static installations. With a minimum bend radius of 5 times the cable diameter and compliance with UL, CSA, and NFPA 79 standards, it is well-suited for industrial machinery and other applications requiring robust, high-flexibility cabling.

Product Highlights:

Potential Applications:

Search Keywords: 79012SLATE100

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

79012-SLATE-100

Alias/AKA:

79012-SL005

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544.42.900

COO:

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
