6717-WH005

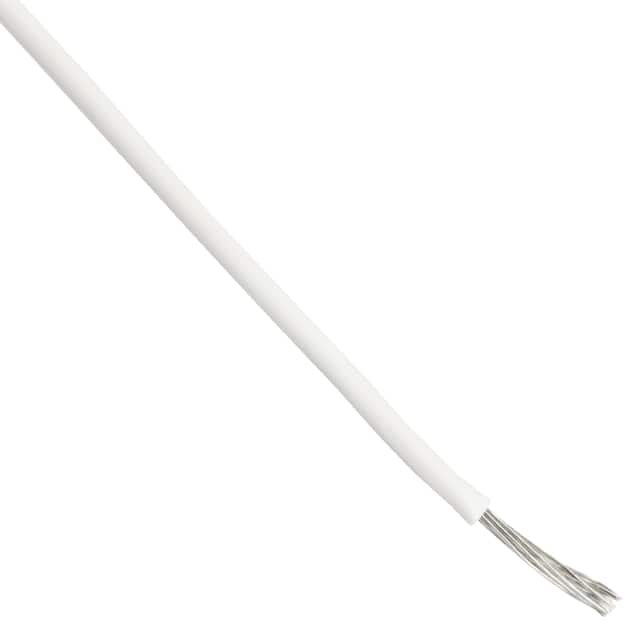

Name: 6717-WH005 Alpha Wire Cable Single Conductor
Brand: Alpha Wire
SKU: 39133598
Availability: InStock

Hook Up Wire - Stranded - 14 (41/30) AWG - 600V - mPPE - White - 100 ft - Tinned Copper ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

6717-WH005 is a single-conductor 14 AWG hookup wire manufactured by Alpha Wire, designed for general-purpose electrical applications requiring reliable insulation and flame resistance. The wire features a tinned copper conductor with a modified polyphenylene ether insulation wall of 0.011 inches nominal thickness, providing a total outer diameter of 0.096 ± 0.002 inches. It is rated for 600V RMS at temperatures up to 105°C and meets UL AWM/STYLE 11028 VW-1 and CSA C/RU AWM I A/B FT1 specifications, with halogen-free construction and compliance with IEC 60332-2 flame behavior standards. The wire exhibits a conductor DC resistance of 2.8 O/1000ft at 20°C and an inductance of 0.03 µH/ft, with a maximum pull tension of 32 lbs and a minimum bend radius of 10 times the cable diameter. This product is ideal for internal wiring in electronic equipment, control circuits, and applications where flame-retardant, RoHS-compliant wire is required.

Product Highlights:

Potential Applications:

Search Keywords: 6717WH005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6717-WH005

Alias/AKA:

6717-WHITE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
