6715-BK005

Name: 6715-BK005 Alpha Wire Cable Single Conductor
Brand: Alpha Wire
SKU: 39133386
Availability: InStock

Hook Up Wire - Stranded - 18 (16/30) AWG - 600V - mPPE - Black - 100 ft - Tinned Copper ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

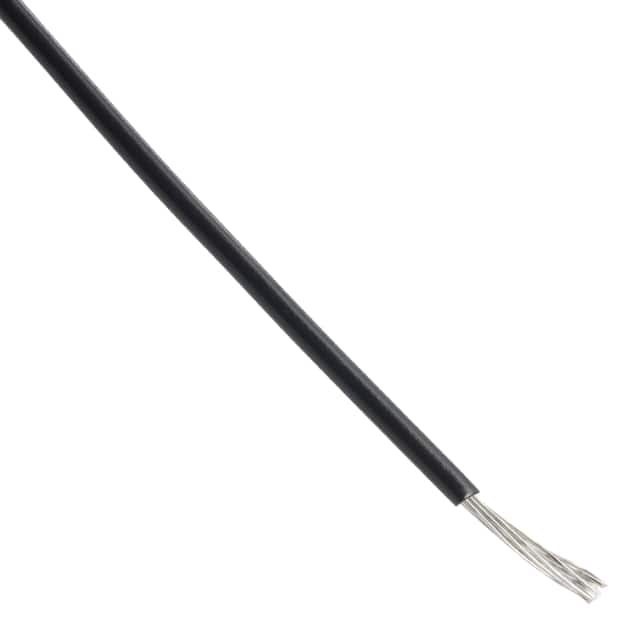

6715-BK005 is a single-conductor hookup wire designed for general-purpose electrical interconnections in equipment and control systems. The wire features an 18 AWG tinned copper conductor with a nominal 0.0095" wall of modified polyphenylene ether insulation, providing a total diameter of 0.067 ± 0.002 inches. It is rated for 600V RMS at temperatures up to 105°C and meets UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 standards, with halogen-free construction and RoHS compliance. The wire exhibits a conductor DC resistance of 7.1 O/1000 ft at 20°C and an inductance of 0.04 µH/ft, with a maximum pull tension of 12.6 lbs and a minimum bend radius of 10 times the cable diameter. This product is commonly used in industrial control panels, appliances, and electronic equipment where reliable, flame-resistant wiring is required.

Product Highlights:

Potential Applications:

Search Keywords: 6715BK005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6715-BK005

Alias/AKA:

6715-BLACK-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
