6713-GY001

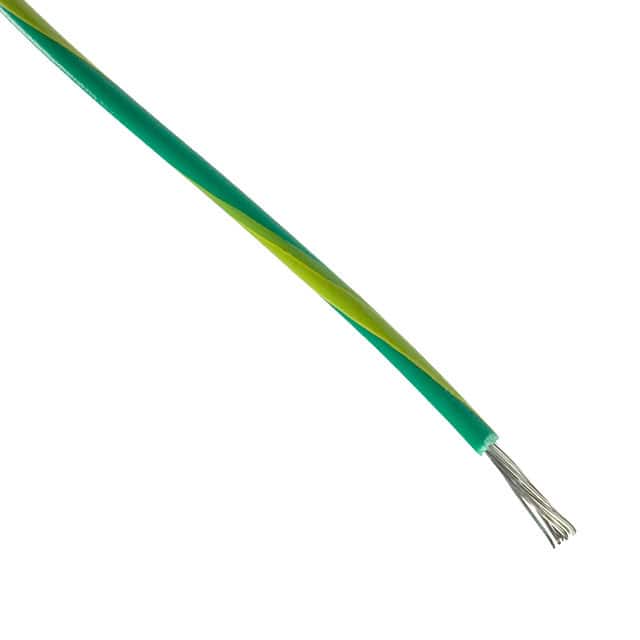

Name: 6713-GY001 Alpha Wire Cable Single Conductor
Brand: Alpha Wire
SKU: 39133316
Availability: InStock

Hook Up Wire - Stranded - 22 (7/30) AWG - 600V - mPPE - Green/Yellow - 1000 ft - Tinned Copper ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

The 6713-GY001 is a single-conductor hookup wire manufactured by Alpha Wire, featuring 22 AWG (7/30) tinned copper conductor with modified polyphenylene ether insulation. The wire is rated for 600V RMS at 105°C and complies with UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 standards, with RoHS and REACH compliance. Key electrical characteristics include a nominal inductance of 0.04 µH/ft and conductor DC resistance of 16.2 O/1000ft at 20°C, while mechanical properties include a temperature range of -40°C to 105°C, a bend radius of 10X cable diameter, and maximum pull tension of 5.5 lbs. This wire is commonly used in general-purpose hookup applications, control circuits, and equipment wiring where reliable insulation and temperature stability are required.

Product Highlights:

Potential Applications:

Search Keywords: 6713GY001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6713-GY001

Alias/AKA:

6713-GRN/YEL-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
