6710-BK005

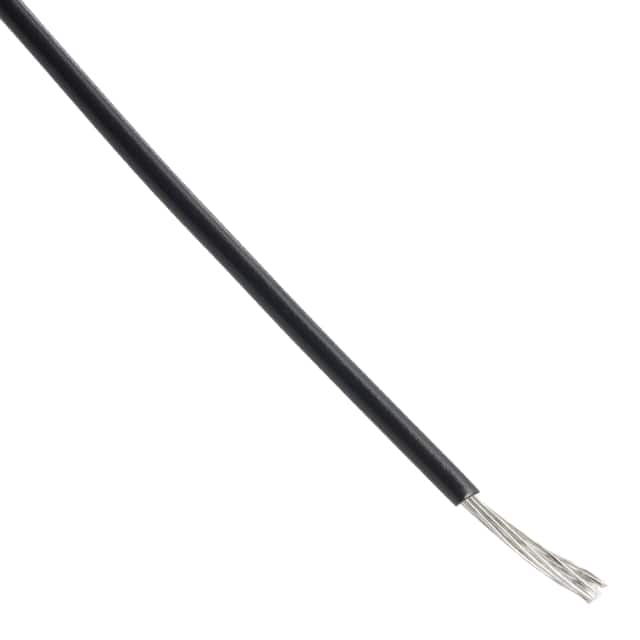

Name: 6710-BK005 Alpha Wire Cable Single Conductor
Brand: Alpha Wire
SKU: 39133166
Availability: InStock

Hook Up Wire - Stranded - 28 (7/36) AWG - 600V - mPPE - Black - 100 ft - Tinned Copper ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

6710-BK005 is a single-conductor hookup wire designed for general-purpose electrical interconnections in industrial and electronic applications. The wire features a 28 AWG (7/36) tinned copper conductor with a 0.0095 inch nominal wall of modified polyphenylene ether insulation, providing an overall diameter of 0.034 ± 0.002 inches. It is rated for 600 VRMS at 105°C and meets UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 specifications, with halogen-free construction compliant with IEC 60332-2 flame behavior standards. The wire operates reliably across a temperature range of -40°C to 105°C, with a maximum bend radius of 10 times the cable diameter and a maximum pull tension of 1.37 lbs. This product is ideal for control circuits, instrumentation, and equipment requiring flame-retardant, RoHS-compliant wiring solutions.

Product Highlights:

Potential Applications:

Search Keywords: 6710BK005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6710-BK005

Alias/AKA:

6710-BLACK-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
