5610B2201-NC005

Alpha Wire

The 5610B2201-NC005 is a shielded, single-pair 22 AWG communication and control cable with a PVC jacket. ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

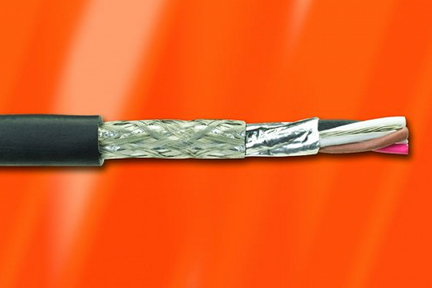

The 5610B2201-NC005 is a shielded, single-pair 22 AWG communication and control cable. It is constructed with two stranded bare copper conductors, PVC insulation, and an overall aluminum/mylar tape shield with a tinned copper drain wire to minimize electrical noise. The cable has a nominal characteristic impedance of 47 Î© and a voltage rating of 300 VRMS. A durable black PVC jacket provides protection, allowing for an operating temperature range of -20Â°C to 105Â°C. This cable is rated as UL Type PLTC and c(UL) Type CMG, making it suitable for power-limited tray applications and general communication wiring.

Product Highlights:

Potential Applications:

Search Keywords: 5610B2201NC005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

5610B2201-NC005

Alias/AKA:

5610B2201-NO-COLOR-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
