5058C-SL005

Name: 5058C-SL005 Alpha Wire Cable MultiConductor
Brand: Alpha Wire
SKU: 10124683
Availability: InStock

Multi-Conductor Cable Tape Polyvinyl Chloride 8 Conductors 20AWG 8.02mm 300VAC - Slate - 30.48m (100ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

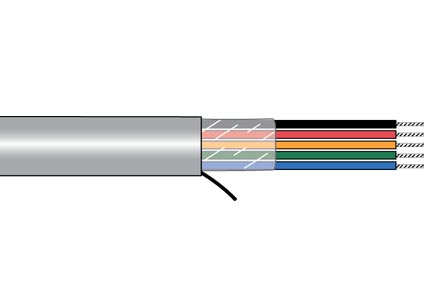

5058C-SL005 is an 8-conductor multi-conductor cable designed for industrial control and instrumentation applications. It features 20 AWG (7/28) tinned copper conductors with 0.016" nominal PVC insulation and a 0.032" nominal PVC jacket, resulting in an overall diameter of 0.302 inches (0.316 inches maximum). The cable is rated for 300 VRMS with an operating temperature range of -30°C to 105°C, and includes sunlight resistance and 60°C oil resistance. It meets UL CM, CSA CMG FT4, and VW-1 flame ratings, making it suitable for use in demanding environments requiring reliable signal transmission and compliance with safety standards.

Product Highlights:

Potential Applications:

Search Keywords: 5058CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

5058C-SL005

Alias/AKA:

5058C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
