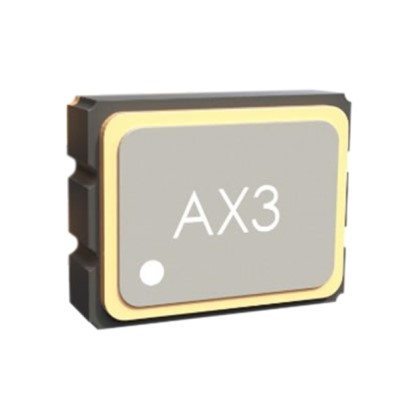

AX3PAF1-156.2500T by abracon
Image is representational - see mfr. specs

AX3PAF1-156.2500T

Abracon

The AX3PAF1-156.2500T is a low-jitter crystal oscillator that provides a 156.25 MHz LVPECL differential output. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AX3PAF1-156.2500T is a ClearClock™ crystal oscillator designed to generate a stable 156.25 MHz clock signal. This oscillator operates on a 3.3V supply and provides a differential LVPECL output with exceptionally low RMS phase jitter, typically 75 fs with a maximum of 150 fs. It maintains a frequency stability of ±25 ppm over an industrial operating temperature range of -40°C to +85°C. Housed in a compact 3.2 x 2.5 mm package, it includes an active-high output enable function on pin 1, making it suitable for demanding applications such as 10G/40G/100G optical Ethernet, data centers, and networking equipment.

Search Keywords: AX3PAF11562500T

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
AX3PAF1-156.2500T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600060
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 800

Can Ship immediately

Minimum Order Quantity: 100

Factory Lead-Time 22 Weeks

Price (USD)

Qty
Unit Price
100
$3.64
250
$3.44
500
$3.29
1,000
$3.14
3,000
$2.91
5,000
$2.84
8,000 +
$2.83
Reel Package
Log in for special pricing Click for Quote Price Match Request
