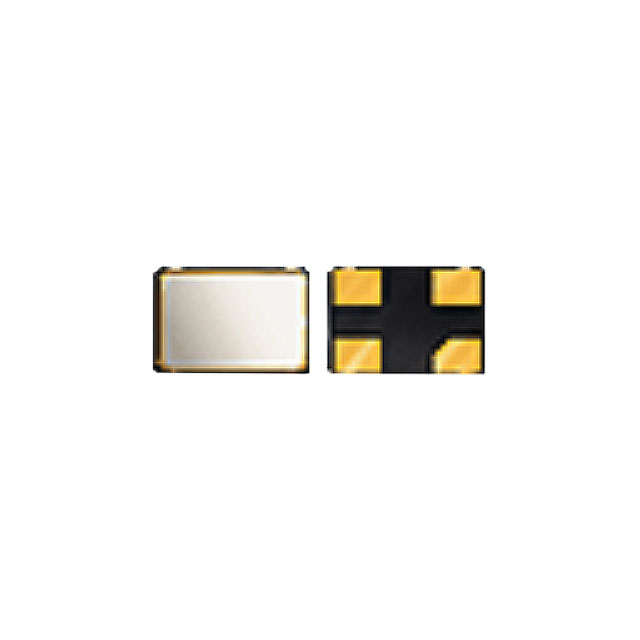

ATX-11-F-27.000MHZ-F05-T by abracon
Image is representational - see mfr. specs

ATX-11-F-27.000MHZ-F05-T

Abracon

XTAL Oscillator TCXO 27 MHz Clipped Sinewave SMD ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ATX-11-F-27.000MHZ-F05-T is a continuous voltage SMD temperature compensated crystal oscillator (TCXO) operating at 27.000 MHz. It features a wide supply voltage range of +1.68V to +3.63V (Option F), frequency stability of ±0.5 ppm over an operating temperature range of -40°C to +85°C, and a clipped sinewave output waveform. The device is housed in a compact 3.2 x 2.5 x 1.2 mm hermetically seam-sealed ceramic package with low current consumption (max 2.5 mA) and fast start-up time of 0.8 to 2.0 ms. This TCXO is RoHS/RoHS II compliant with MSL Level 1 rating, making it suitable for cellular and cordless phones, consumer electronics, industrial control and automation, and mobile communication applications.

Search Keywords: ATX11F27000MHZF05T

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ATX-11-F-27.000MHZ-F05-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600060
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 1,815

Can Ship immediately

Minimum Order Quantity: 250

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
250
$1.84
500
$1.76
1,000
$1.69
3,000
$1.56
5,000
$1.34
8,000
$1.29
10,000
$1.28
15,000 +
$1.27
Reel Package
Log in for special pricing Click for Quote Price Match Request
