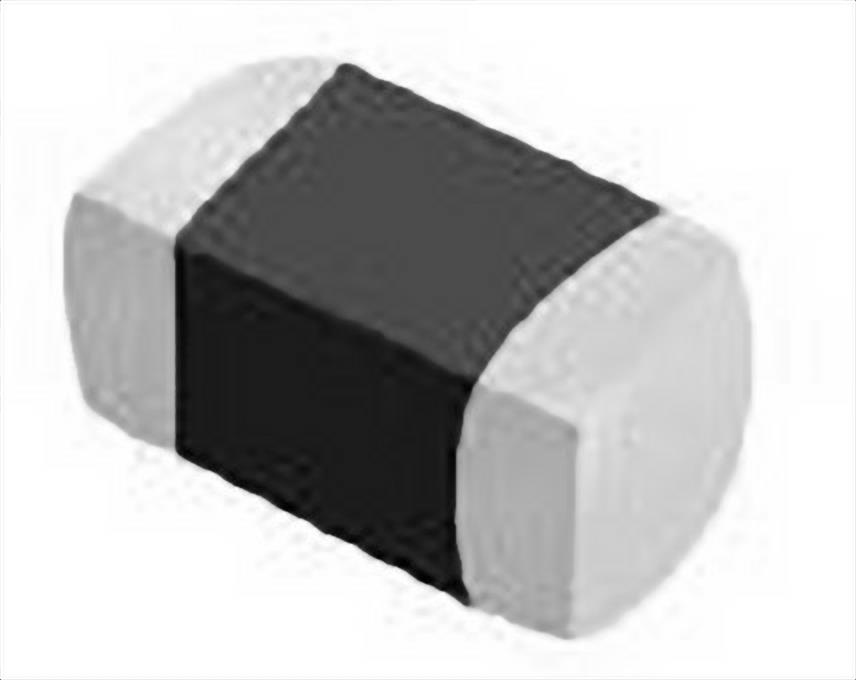

ASMPH-0603-1R0M-T
Power Inductor - SMD 0603 - 1 (+/-) 20% uH - DCR 0.2 ohms - SRF 125 MHz - 800A Max - 0603 SMD ...
DESCRIPTION
ASMPH-0603-1R0M-T is an SMD multilayer chip power inductor featuring a compact 1.6 × 0.8 × 0.8 mm form factor and 1.0 µH inductance with ±20% tolerance. The inductor exhibits a typical DC resistance (DCR) of 0.20 O (maximum 0.25 O), a self-resonant frequency (SRF) of 125 MHz minimum, and supports a temperature rise current of 1000 mA maximum with a typical saturation current of 800 mA. Constructed using low-loss ferrite material with a monolithic structure and magnetically shielded design, it provides high DC bias current capability through trench technology while eliminating cross-coupling effects. This component is ideal for switching mode regulators in smartphones and cameras, buck converters for RF modules and audio codecs, and boost converters for flash drivers, offering excellent solderability and heat resistance for space-limited board applications.
Search Keywords: ASMPH06031R0MT
SPECIFICATIONS
FREQUENTLY ASKED QUESTIONS
Is ASMPH-0603-1R0M-T RoHS compliant?
Yes, ASMPH-0603-1R0M-T is RoHS compliant.
What is the lead time for ASMPH-0603-1R0M-T?
The standard lead time for ASMPH-0603-1R0M-T is approximately 14 weeks. In-stock quantities ship from Master Electronics.
IN STOCK: 23,305
Can Ship immediately
Minimum Order Quantity: 4000
Multiple: 4000
Factory Lead-Time 14 Weeks
Datasheet
