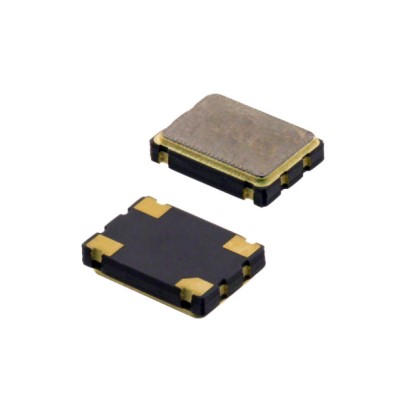

ASDDV-8.000MHZ-LR-T3
AbraconOscillator XO 8.000MHz 1.6V ~ 3.6V CMOS SMD ...
DESCRIPTION
ASDDV-8.000MHZ-LR-T3 is a continuous voltage SMD crystal oscillator operating at 8.000 MHz with a hermetically seam-sealed ceramic package measuring 2.5 x 2.0 x 0.95 mm. The device supports continuous Vdd operation from 1.6 V to 3.63 V and features output enable/start and disable/stop functionality via tri-state control, with CMOS/HCMOS/LVCMOS compatible output waveforms. Key electrical characteristics include an overall frequency stability of ±25 ppm, maximum start-up time of 8.0 ms, output load capability of 15 pF, and RMS period jitter of 5.0 ps at 3.0 V to 3.63 V supply. The oscillator is optimized for low current consumption and operates across a temperature range of -40°C to +85°C, making it well-suited for portable and wearable electronics, IoT devices, consumer electronics, industrial control and automation, and mobile communication applications.
Search Keywords: ASDDV8000MHZLRT3
SPECIFICATIONS
IN STOCK: 3,000
Can Ship immediately
MOQ for In Stock Qty: 500
MOQ for out of Stock Qty: 500
Factory Lead-Time 10 Weeks
Datasheet
PCN - 10/27/2022 - Added Pin 1 Mark to Package
