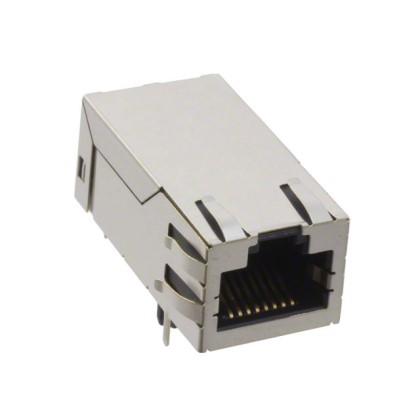

ARJ-146 by abracon
Image is representational - see mfr. specs

ARJ-146

Abracon

CONN MAGJACK 1PORT 1000 BASE-T ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ARJ-146 is an RJ45 1000 Base-T jack with an integrated magnetic module and PoE capability designed for high-speed Ethernet applications. It features a 1CT:1CT turn ratio with a minimum inductance of 350 µH at 100 kHz with 8 mA bias current, providing high performance for maximum EMI suppression across four channels. The connector is compliant with IEEE 802.3af standard and rated for 15W, 350 mA at 48V PoE, with insertion loss ranging from -19 dB to -1.2 dB across 0.1–80 MHz and return loss of -12 dB at 30–60 MHz. The device offers enhanced reliability with 5000 mating/unmating cycles and operates over a temperature range of 0°C to +70°C. It is ideal for network interface cards (NICs), LAN-on-motherboard (LoM) applications, and PC connectivity, compatible with leading PHY IC manufacturers such as Broadcom, Marvell, and Microsemi.

Search Keywords: ARJ146

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ARJ-146
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504408500
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
120
Package Type:
TRAY

IN STOCK: 240

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 1200

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
15
$12.42
250
$12.39
500
$12.36
1,200
$12.33
2,400
$6.29
3,600
$4.28
4,800 +
$4.20
Log in for special pricing Click for Quote Price Match Request
