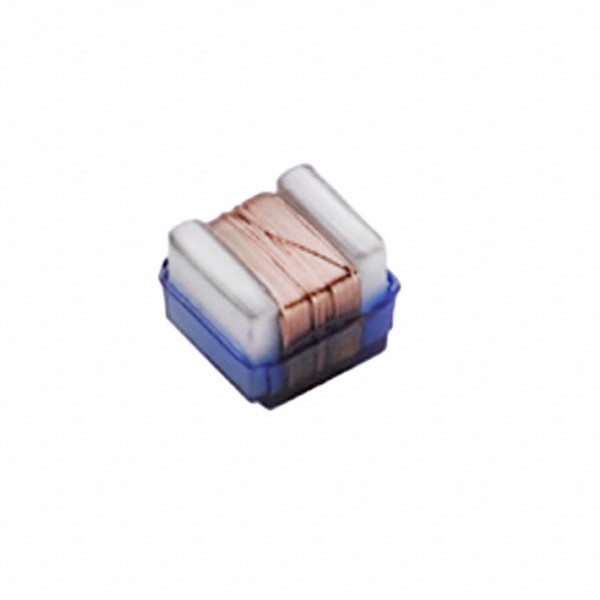

AISC-0603HP-10NJ-T by abracon
Image is representational - see mfr. specs

AISC-0603HP-10NJ-T

Abracon

Fixed Inductor 10nH 1.35A 60 Mohm SMD ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

AISC-0603HP-10NJ-T is a high-current ceramic wire-wound inductor designed for RF and high-frequency applications. This 0603-sized component features a 10 nH inductance with ±5% tolerance (J-code), delivering a minimum quality factor of 35 at 250 MHz and a typical quality factor of 50 at 250 MHz and 82 at 900 MHz. The inductor exhibits a maximum DC resistance of 0.060 O, supports a maximum rated current of 1350 mA, and achieves a minimum self-resonant frequency of 4800 MHz, enabling excellent performance in high-frequency circuits. With dimensions of 1.80 × 1.12 × 1.02 mm and RoHS/RoHS II compliance, this component is widely used in communications applications including cell phones, Bluetooth, W-LAN, GPS, broadband networks, and RF circuits where higher Q, lower DCR, and excellent current handling are essential.

Search Keywords: AISC0603HP10NJT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
AISC-0603HP-10NJ-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504504000
COO:
MY
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL

IN STOCK: 18,000

Can Ship immediately

Minimum Order Quantity: 700

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
700
$0.2016
6,000
$0.1968
9,000
$0.1846
12,000
$0.1827
27,000
$0.1683
51,000
$0.1568
102,000 +
$0.1461
Log in for special pricing Click for Quote Price Match Request
