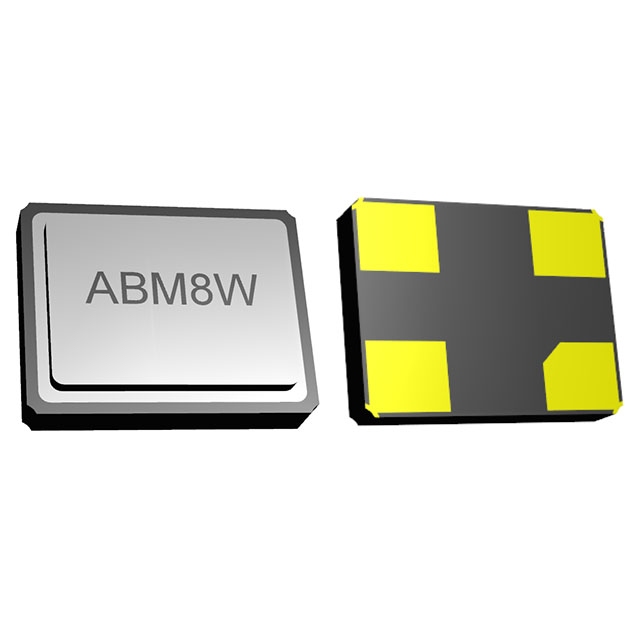

ABM8W-48.0000MHZ-4-D1X-T3
AbraconCeramic SMD Crystal - 48.0000MHz ±10ppm - Stability: ±20ppm -40°C to +85°C - 4pF - ESR: 30 ohms - Tape&Reel ...
DESCRIPTION
The ABM8W-48.0000MHZ-4-D1X-T3 is a low ESR, low load capacitance ceramic surface-mount crystal designed for energy-efficient wearables and IoT applications. Operating at a fundamental frequency of 48.0000 MHz with a 4 pF load capacitance, this crystal delivers exceptionally low equivalent series resistance (ESR) of less than 18 O across the -40°C to +125°C operating temperature range, with frequency tolerance of ±10 ppm at 25°C and frequency stability of ±10 ppm over the full temperature range. The device features a compact 3.2 × 2.5 × 0.8 mm package with seam sealing for long-term reliability and is RoHS/RoHS II compliant. This crystal is optimized for ultra-low power applications including Bluetooth/BLE modules, wireless connectivity, machine-to-machine (M2M) communication, and near-field communication (NFC) systems where minimal power consumption and stable frequency performance are essential.
Search Keywords: ABM8W480000MHZ4D1XT3
SPECIFICATIONS
IN STOCK: 9,000
Can Ship immediately
MOQ for In Stock Qty: 3000
MOQ for out of Stock Qty: 3000
Multiple: 3000
Factory Lead-Time 10 Weeks
Datasheet
