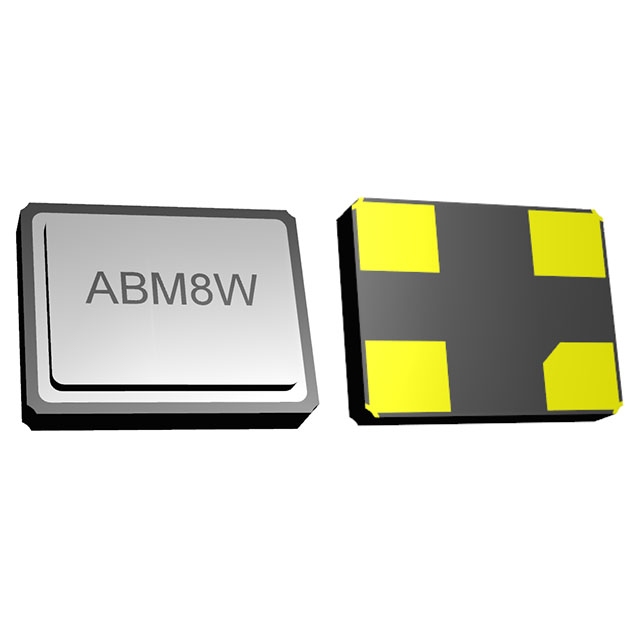

ABM8W-16.0000MHZ-8-B2U-T3
AbraconCeramic SMD Crystal - 16.0000MHz ±20ppm - Stability: ±10ppm -20°C to +70°C - 8pF - ESR: 70 ohms - Tape&Reel ...
DESCRIPTION
The ABM8W-16.0000MHZ-8-B2U-T3 is a low ESR, low load capacitance ceramic surface-mount crystal designed for energy-efficient wearables and IoT applications. This device operates at a fundamental frequency of 16.0000 MHz with an 8 pF load capacitance, featuring exceptionally low equivalent series resistance (ESR) of less than 40 O over the operating temperature range of -20°C to +70°C. The crystal is housed in a compact 3.2 × 2.5 × 0.8 mm package with a shunt capacitance below 1.2 pF typical, seam-sealed for long-term reliability, and maintains frequency tolerance of ±10 ppm at 25°C with frequency stability of ±10 ppm over temperature. It is ideal for ultra-low power microcontroller applications, Bluetooth/BLE modules, wireless connectivity, and other battery-powered IoT devices requiring stable, low-power timing references.
Search Keywords: ABM8W160000MHZ8B2UT3
SPECIFICATIONS
IN STOCK: 3,000
Can Ship immediately
MOQ for In Stock Qty: 200
MOQ for out of Stock Qty: 200
Factory Lead-Time 10 Weeks
Datasheet
