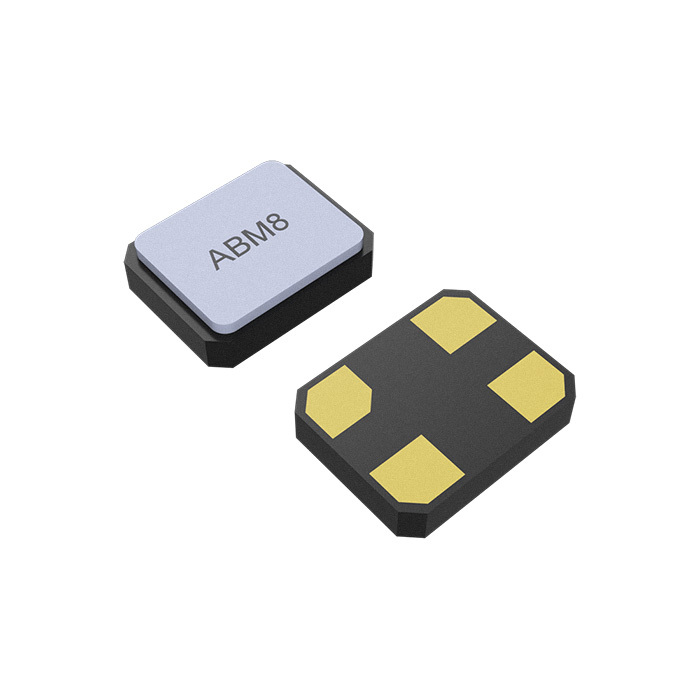

ABM8-25.000MHZ-D-T
AbraconCeramic SMD Crystal - 25.000MHz ±50ppm - Stability: ±15ppm -40 to +85°C - 18pF - ESR: 50ohms - Tape&Reel ...
DESCRIPTION
The ABM8-25.000MHZ-D-T is a ceramic surface-mount crystal oscillator designed for high-density applications requiring precise frequency control. Operating at a fundamental frequency of 25.000 MHz, this device features a hermetically sealed seam-sealed package that assures high reliability and is not moisture sensitive (MSL = N/A). The crystal exhibits tight frequency tolerance of ±50 ppm at +25°C and frequency stability of ±50 ppm over the operating temperature range of -10°C to +60°C, with a maximum equivalent series resistance (ESR) of 50 O for this frequency band. With a load capacitance of 18.0 pF, shunt capacitance maximum of 3.0 pF, and drive level range of 10–100 µW, this crystal is well-suited for modems, communication equipment, wireless applications, and PMCIA devices where RoHS compliance and reliable frequency generation are essential.
Search Keywords: ABM825000MHZDT
SPECIFICATIONS
IN STOCK: 6,000
Can Ship immediately
Minimum Order Quantity: 1000
Multiple: 1000
Factory Lead-Time 10 Weeks
Datasheet
