ABM8-18.000MHZ-D2X-T by abracon

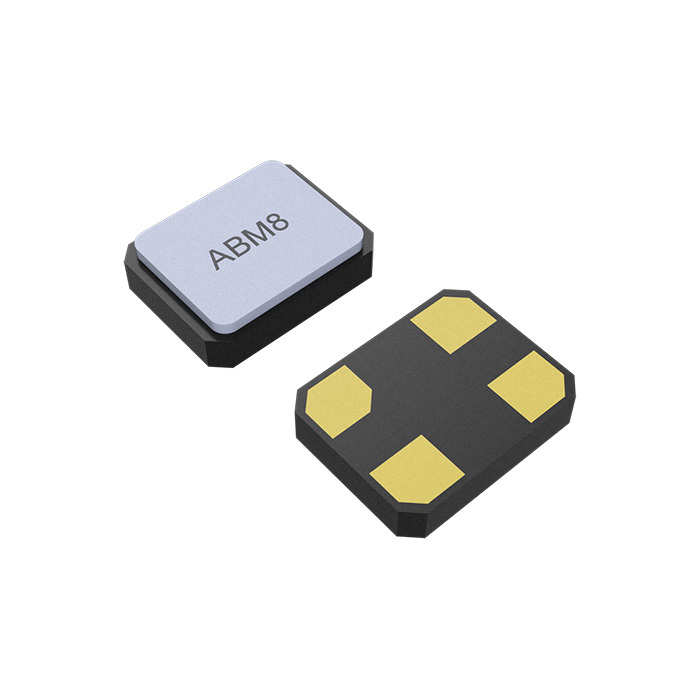

Image is representational - see mfr. specs

ABM8-18.000MHZ-D2X-T

Abracon

Ceramic SMD Crystal - 18.000MHz ±20ppm - Stability: ±20ppm -40 to +85°C - 18pF - ESR: 70ohms - Tape&Reel ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ABM8-18.000MHZ-D2X-T is a ceramic surface-mount crystal oscillator operating at 18.000 MHz in fundamental mode, housed in a compact 3.2 x 2.5 x 0.8 mm seam-sealed package. The device features a load capacitance of 18.0 pF, equivalent series resistance (ESR) of 70 O maximum, and shunt capacitance of 3.0 pF maximum, with a drive level range of 10 to 100 µW. It operates over a temperature range of -10°C to +60°C with frequency tolerance and stability of ±50 ppm at +25°C, and exhibits aging characteristics of ±2 ppm in the first year. The hermetically sealed package provides high reliability and is RoHS compliant with lead-free construction, making it suitable for modems, communication equipment, wireless applications, and other high-density electronic systems requiring stable frequency references.

Search Keywords: ABM818000MHZD2XT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABM8-18.000MHZ-D2X-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 20,000

Can Ship immediately

Minimum Order Quantity: 600

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
600
$0.118
6,000
$0.113
12,000
$0.108
31,000
$0.104
97,000 +
$0.100
Log in for special pricing Click for Quote Price Match Request
