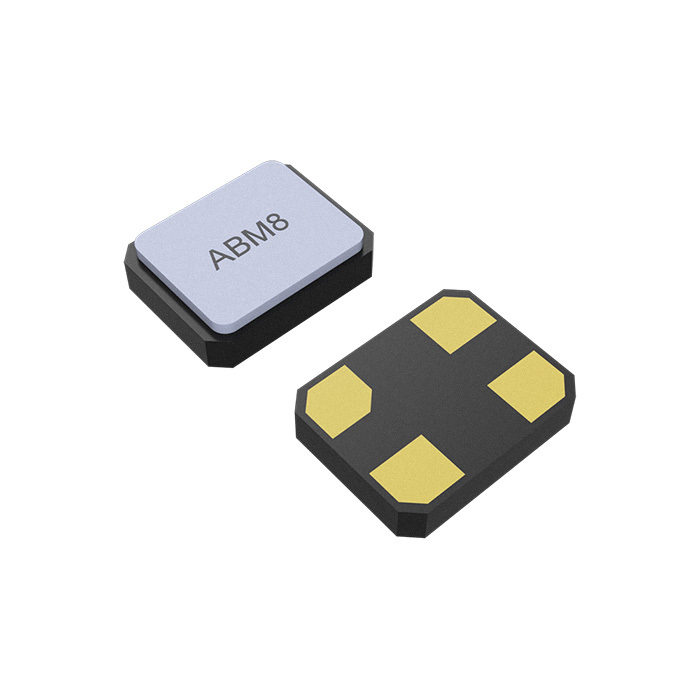

ABM8-12.000MHZ-R100-D7G-T by abracon
Image is representational - see mfr. specs

ABM8-12.000MHZ-R100-D7G-T

Abracon

Ceramic SMD Crystal - 12.000MHz ±15ppm - Stability: ±15ppm -40 to +85°C - 18pF - ESR: 10ohms - Tape&Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ABM8-12.000MHZ-R100-D7G-T is a ceramic surface-mount crystal oscillator operating at 12.000 MHz in fundamental mode with a maximum equivalent series resistance (ESR) of 120 O. This hermetically sealed device features a compact 3.2 × 2.5 × 0.8 mm package and is not moisture sensitive (MSL = N/A), ensuring high reliability in demanding environments. The crystal exhibits a frequency tolerance of ±50 ppm at +25°C and frequency stability of ±50 ppm over the operating temperature range of -10°C to +60°C, with a load capacitance of 18.0 pF and maximum shunt capacitance of 3.0 pF. It is RoHS compliant and suitable for reflow soldering, making it ideal for high-density applications including modems, communication equipment, test instruments, and wireless systems where stable timing and compact form factor are essential.

Search Keywords: ABM812000MHZR100D7GT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABM8-12.000MHZ-R100-D7G-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600050
COO:
CN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 5,000

Can Ship immediately

Minimum Order Quantity: 1000

Multiple: 1000

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1,000
$0.2634
3,000
$0.2519
5,000
$0.1978
8,000
$0.1934
10,000
$0.1779
15,000
$0.1775
25,000
$0.1757
50,000 +
$0.1746
Reel Package
