ABM3B-18.432MHZ-B2H-T by abracon

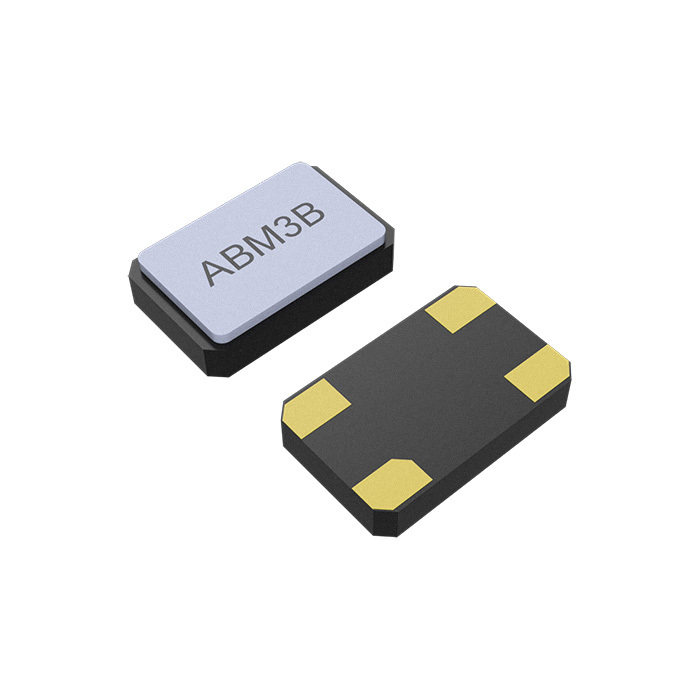

Image is representational - see mfr. specs

ABM3B-18.432MHZ-B2H-T

Abracon

SMD Crystal - 18.432MHZ ±20ppm - 18pF - Temp Stability: ±35ppm -20°C to +70°C - Tape&Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ABM3B-18.432MHZ-B2H-T is a ceramic surface-mount quartz crystal designed for communication, test equipment, and high-density applications. The device operates at 18.432 MHz with a frequency tolerance of ±10 ppm at +25°C and frequency stability of ±15 ppm over the operating temperature range of -40°C to +85°C. It features a compact 5.0 mm × 3.2 mm × 1.1 mm four-pad SMD package with low load capacitance of 6 pF and low equivalent series resistance of 50 O, achieving tight frequency accuracy and long-term reliability through seam sealing. The crystal is suitable for reflow soldering and is REACH/RoHS II compliant, making it ideal for wireless, PCMCIA, and communication applications requiring stable frequency references.

Search Keywords: ABM3B18432MHZB2HT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABM3B-18.432MHZ-B2H-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600050
COO:
CN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 1,000

Can Ship immediately

Minimum Order Quantity: 1000

Multiple: 1000

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1,000
$0.554
3,000
$0.519
5,000
$0.513
8,000
$0.511
10,000
$0.510
15,000
$0.509
25,000
$0.507
50,000 +
$0.506
Reel Package
