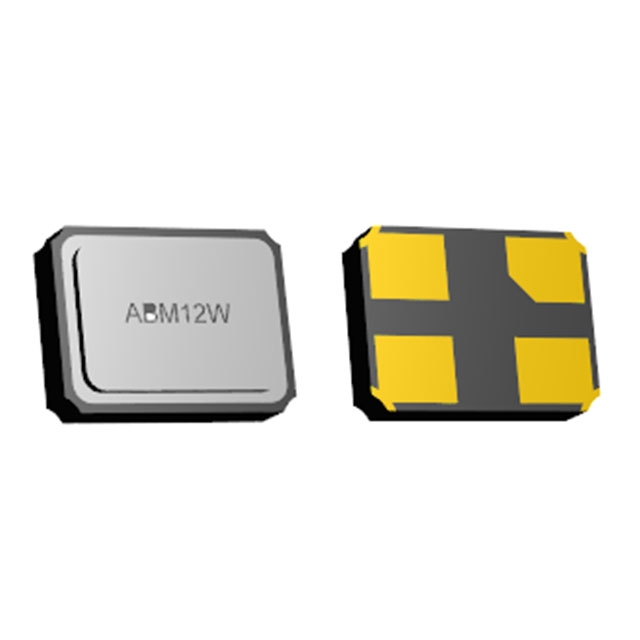

ABM12W-25.0000MHZ-6-B1U-T3 by abracon
Image is representational - see mfr. specs

ABM12W-25.0000MHZ-6-B1U-T3

Abracon

Low Profile SMD Quartz Crystal - 25.0000MHZ ±10ppm - 6pF - Temp Stability: ±10ppm -20°C to +70°C - Tape&Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ABM12W-25.0000MHZ-6-B1U-T3 is a low-profile quartz crystal operating at 25.0000 MHz in fundamental mode, designed for energy-saving wearables and IoT applications. It features a compact 1.6 x 1.2 x 0.4 mm package with 6 pF load capacitance, ±10 ppm frequency tolerance at +25°C, and ±10 ppm frequency stability over the operating temperature range of -20°C to +70°C. The crystal offers an equivalent series resistance (ESR) of 100 O maximum for the 24.0000-31.9999 MHz frequency range at CL=6 pF, with shunt capacitance less than 1.0 pF typical and 2.0 pF maximum. Its ultra-low profile and seam-sealed construction make it ideal for height-constrained designs in Bluetooth/BLE, wireless modules, and ultra-low power MCU applications.

Search Keywords: ABM12W250000MHZ6B1UT3

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABM12W-25.0000MHZ-6-B1U-T3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600060
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL

IN STOCK: 9,000

Can Ship immediately

MOQ for In Stock Qty: 500

MOQ for out of Stock Qty: 750

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
500
$1.0426
750
$1.0400
1,500
$0.6400
2,250
$0.5067
3,000 +
$0.4965
Reel Package
Log in for special pricing Click for Quote Price Match Request
