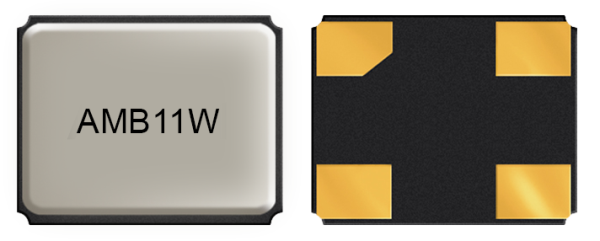

ABM11W-32.0000MHZ-8-B1U-T3
AbraconLow Profile SMD Quartz Crystal - 32.0000MHZ ±10ppm - 8pF - Temp Stability: ±10ppm -20°C to +70°C - Tape&Reel ...
DESCRIPTION
The ABM11W-32.0000MHZ-8-B1U-T3 is an IoT-optimized low-profile quartz crystal designed for energy-saving wearables and IoT applications. It operates at a fundamental frequency of 32.0000 MHz with a load capacitance of 8.0 pF, frequency tolerance of ±10 ppm at +25°C, and frequency stability of ±20 ppm over the operating temperature range of -40°C to +85°C. The device features a compact 2.0 × 1.6 × 0.5 mm form factor with seam sealing for long-term reliability, an equivalent series resistance of 80 O maximum, and a shunt capacitance of 1.0 to 2.0 pF. This crystal is ideal for Bluetooth/BLE modules, wireless connectivity, ultra-low power microcontrollers, and NFC applications where space constraints and low power consumption are critical design requirements.
Search Keywords: ABM11W320000MHZ8B1UT3
SPECIFICATIONS
IN STOCK: 3,000
Can Ship immediately
Minimum Order Quantity: 3000
Multiple: 3000
Factory Lead-Time 10 Weeks
Datasheet
