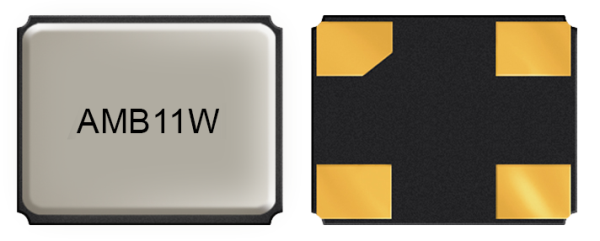

ABM11W-25.0000MHZ-6-K1Z-T3 by abracon
Image is representational - see mfr. specs

ABM11W-25.0000MHZ-6-K1Z-T3

Abracon

A low-profile 25.0000 MHz quartz crystal optimized for IoT and wearable applications in a 2.0 x 1.6 x 0.5 mm package. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ABM11W-25.0000MHZ-6-K1Z-T3 is a low-profile quartz crystal designed for energy-saving timing applications. It operates at a fundamental frequency of 25.0000 MHz with a frequency stability of ±20 ppm across an industrial operating temperature range of -40°C to +85°C. This component features a required load capacitance of 8.0 pF and a maximum equivalent series resistance (ESR) of 80 Ω. With its ultra-low profile of 0.5 mm maximum height and seam-sealed construction for long-term reliability, it is ideally suited for height-constrained designs. Common applications include wearables, Internet of Things (IoT) devices, Bluetooth/BLE modules, and M2M connectivity.

Search Keywords: ABM11W250000MHZ6K1ZT3

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABM11W-25.0000MHZ-6-K1Z-T3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600060
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL

IN STOCK: 3,000

Can Ship immediately

Minimum Order Quantity: 1000

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1,000
$0.1888
3,000
$0.1854
6,000
$0.1765
9,000
$0.1753
12,000
$0.1621
27,000
$0.1598
51,000
$0.1581
102,000 +
$0.1572
Reel Package
Log in for special pricing Click for Quote Price Match Request
