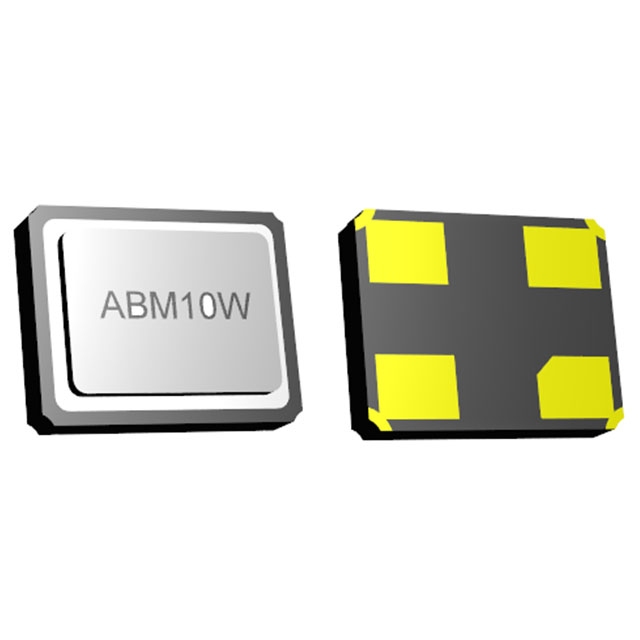

ABM10W-24.0000MHZ-6-D2X-T3
AbraconSMD Quartz Crystal - Low Profile - 24.0000MHZ ±20ppm - Temp Stability: ±20ppm -40°C to 85°C - Tape&Reel ...
DESCRIPTION
The ABM10W-24.0000MHZ-6-D2X-T3 is a low ESR, low load capacitance ceramic surface-mount crystal designed for energy-efficient wearables and IoT applications. Operating at a fundamental frequency of 24.0000 MHz with a 6 pF load capacitance, this crystal delivers exceptionally low equivalent series resistance (ESR) of less than 35 O typical (maximum 50 O) over the operating temperature range, with a shunt capacitance (C0) below 2.0 pF. The device features a compact 2.5 × 2.0 × 0.6 mm form factor ideally suited for height-constrained designs, operates over a temperature range of -40°C to +85°C, and maintains frequency stability of ±10 ppm over temperature with ±10 ppm frequency tolerance at 25°C. Its seam-sealed construction and RoHS/RoHS II compliance ensure long-term reliability in wireless modules, Bluetooth/BLE applications, NFC, and ultra-low power microcontroller designs.
Search Keywords: ABM10W240000MHZ6D2XT3
SPECIFICATIONS
IN STOCK: 3,000
Can Ship immediately
MOQ for In Stock Qty: 200
MOQ for out of Stock Qty: 200
Factory Lead-Time 10 Weeks
Datasheet
