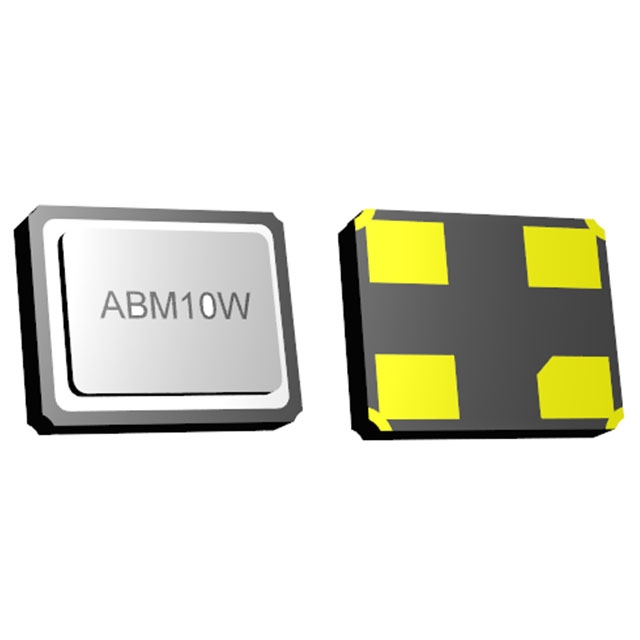

ABM10W-22.5792MHZ-8-K1Z-T3 by abracon
Image is representational - see mfr. specs

ABM10W-22.5792MHZ-8-K1Z-T3

Abracon

SMD Quartz Crystal - Low Profile - 22.5792MHZ ±10ppm - Temp Stability: ±50ppm -40°C to 125°C - Tape&Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ABM10W-22.5792MHZ-8-K1Z-T3 is a low ESR, low load capacitance ceramic surface-mount crystal designed for energy-efficient wearables and IoT applications. Operating at a fundamental frequency of 22.5792 MHz, this device features exceptionally low plating capacitance as low as 4 pF with optimized equivalent series resistance, enabling superior performance in power-constrained designs. The ultra-compact 0.6 mm maximum height makes it ideal for height-constrained applications, while seam sealing ensures long-term reliability. With RoHS/RoHS II compliance and MSL Level N/A, this crystal is well-suited for Bluetooth/BLE modules, wireless connectivity, ultra-low power microcontrollers, and NFC applications where frequency stability and minimal power consumption are critical.

Search Keywords: ABM10W225792MHZ8K1ZT3

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABM10W-22.5792MHZ-8-K1Z-T3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600060
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL

IN STOCK: 7,656

Can Ship immediately

Minimum Order Quantity: 3000

Multiple: 3000

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
3,000
$0.3143
6,000
$0.2827
9,000
$0.2752
12,000
$0.2650
15,000
$0.2609
27,000
$0.2502
51,000 +
$0.2392
Reel Package
Log in for special pricing Click for Quote Price Match Request
