ABLS-12.000MHZ-20-B-3-H-T by abracon

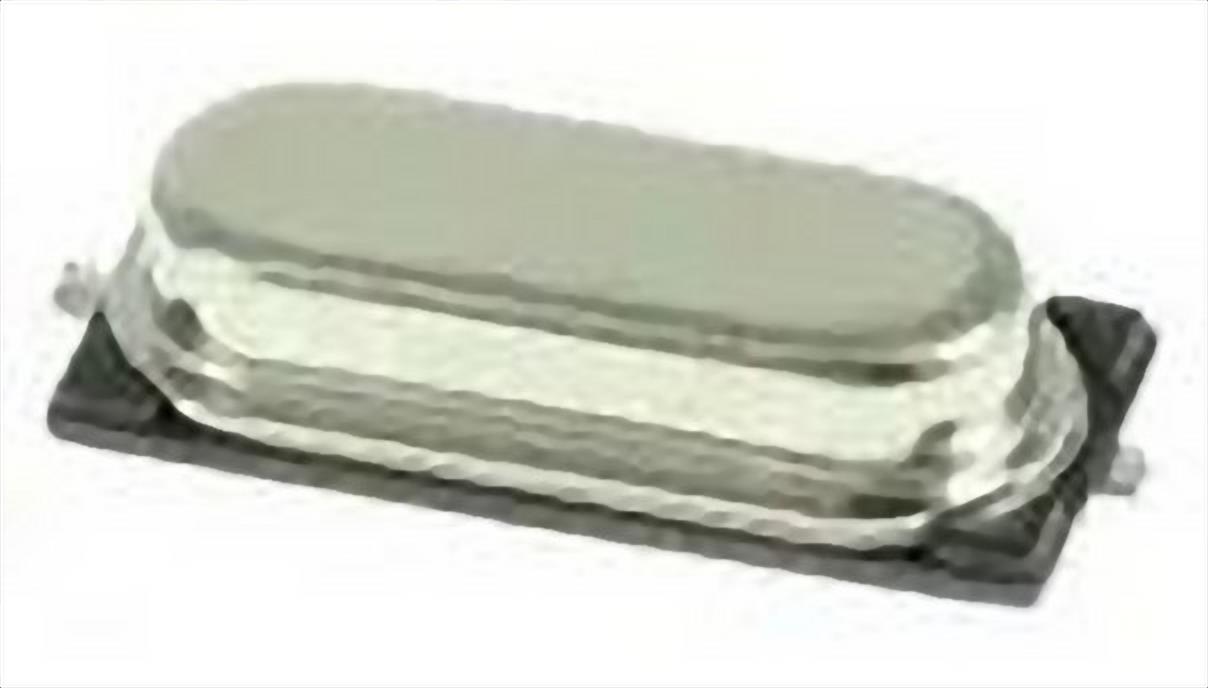

Image is representational - see mfr. specs

ABLS-12.000MHZ-20-B-3-H-T

Abracon

Crystal - 12.000MHZ (+/-) 25ppm - 20pF - SMD LOW PROFILE - HC/49US (AT49) - -20°C to +70°C - Tape&Reel ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ABLS-12.000MHZ-20-B-3-H-T is an SMD low-profile crystal oscillator operating at 12.000 MHz in fundamental mode, housed in a compact HC/49US (AT49) package measuring 11.5 × 4.7 × 4.2 mm. The device features an AT-cut crystal with a maximum equivalent series resistance (ESR) of 50 O at this frequency, a shunt capacitance of 7 pF maximum, and a load capacitance of 18 pF. It operates over a temperature range of -20°C to +70°C with a frequency tolerance of ±25 ppm at +25°C and frequency stability of ±35 ppm over the operating temperature range. The crystal is hermetically sealed, RoHS compliant, and suitable for reflow soldering, making it ideal for computers, modems, microprocessors, and wireless applications requiring stable frequency references.

Search Keywords: ABLS12000MHZ20B3HT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ABLS-12.000MHZ-20-B-3-H-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600050
COO:
CN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 7,000

Can Ship immediately

Minimum Order Quantity: 1000

Multiple: 1000

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1,000
$0.1008
3,000
$0.0990
5,000
$0.0878
8,000
$0.0871
25,000
$0.0810
50,000
$0.0800
100,000
$0.0791
150,000 +
$0.0786
Reel Package
Log in for special pricing Click for Quote Price Match Request
