SCHURTER's SHF and SHT Fuse Series and FUS Fuseholder Series

SCHURTER’s high performance SHF and SHT fuses provide higher voltage, overcurrent, and short circuit protection in a universally accepted compact package size 6.3x32 mm. The SHF and SHT fuses offer 16 rated currents from 0.5A to 32A up to 500 VAC/VDC.

  • Quick-Acting…Primary protection up to 500 VAC/VDC. Breaking capacity up to 50kA VAC and 20kA VDC.
  • Time-Lag…Primary protection up to 500 VAC and 400 VDC. Breaking capacity up to 10kA VAC and 20kA VDC.
  • Applications for Fuses: 3-phase systems, Photovoltaic inverter to grid DC to AC or DC to DC, HVAC, Lighting systems, server farms and more.
  • The FUS series shock-safe, snap-in panel mount fuseholder is designed for robust applications and is IP67 weatherproof rated. The FUS is rated 16 A @ 500 VAC (IEC) and up to 32 A @ 600 VAC /VDC (UL/CSA). The fuseholder accepts 5x20 mm or 6.3 x 32 mm fuses.
  • Applications: Equipment exposed to outdoor weather, or oil and chemical, marine, medical, food processing, laboratory and mining environments.
View
Show products manufactured by Schurter
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support Datasheet
Product Guides

93 PRODUCT RESULTS FOR ""

Filter Results

93 Products

    8020.5071
    Data Sheet
    8020.5071 Schurter
    SHF 6.3x32, 2 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    In Stock: 1020
    Can Ship immediately
    30
    $0.8658
    250
    $0.6397
    1,000
    $0.5565
    2,500
    $0.5537
    5,000
    $0.4574

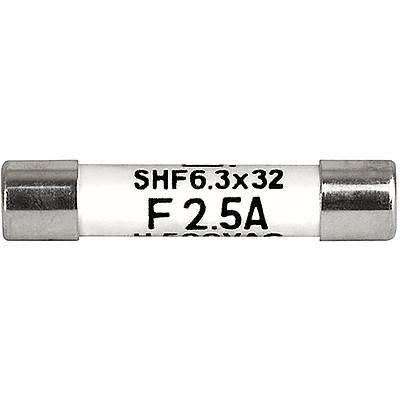

    8020.5071.G
    Data Sheet
    8020.5071.G Schurter
    SHF 6.3x32, 2 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    In Stock: 3000
    Can Ship immediately
    50
    $0.4560
    250
    $0.4146
    1,000
    $0.3986
    3,000
    $0.3874
    5,000
    $0.3444
    8020.5071.PT
    Data Sheet
    8020.5071.PT Schurter
    SHT 6.3x32 Pigtail, 2 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse, 6.3x32
    VIEW PRODUCT
    In Stock: 1
    Can Ship immediately
    1
    $0.6612
    100
    $0.6011
    300
    $0.5378
    1,000
    $0.5255
    2,500
    $0.5039
    8020.5072
    Data Sheet
    8020.5072 Schurter
    SHF 6.3x32, 2.5 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    In Stock: 1260
    Can Ship immediately
    MANUFACTURER STOCK 4260
    can ship 5/4/26
    30
    $0.9017
    250
    $0.6129
    1,000
    $0.5395
    2,500
    $0.5368
    5,000
    $0.4574
    8020.5072.G
    Data Sheet
    8020.5072.G Schurter
    SHF 6.3x32, 2.5 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    On Order: 1950
    can ship 9/14/26
    50
    $0.6404
    250
    $0.5371
    1,000
    $0.4970
    3,000
    $0.4690
    5,000
    $0.4110
    8020.5072.PT
    Data Sheet
    8020.5072.PT Schurter
    SHT 6.3x32 Pigtail, 2.5 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse, 6.3x32
    VIEW PRODUCT
    20 Weeks
    100
    $0.844
    300
    $0.686
    1,000
    $0.655
    2,500
    $0.601
    5,000
    $0.541
    8020.5073
    Data Sheet
    8020.5073 Schurter
    SHF 6.3x32, 3.15 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    In Stock: 20
    Can Ship immediately
    1
    $0.5408
    50
    $0.4916
    250
    $0.4470
    1,000
    $0.4297
    2,500
    $0.4177
    8020.5073.G
    Data Sheet
    8020.5073.G Schurter
    SHF 6.3x32, 3.15 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    In Stock: 5
    Can Ship immediately
    1
    $0.5016
    50
    $0.4560
    250
    $0.4146
    1,000
    $0.3986
    3,000
    $0.3874

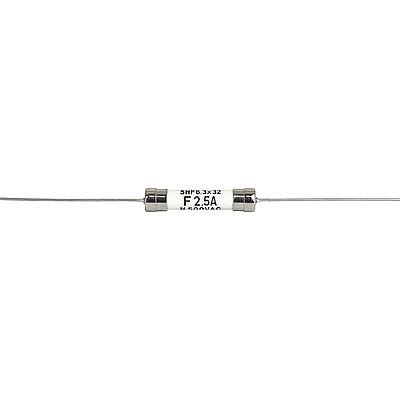

    8020.5073.PT
    Data Sheet
    8020.5073.PT Schurter
    SHT 6.3x32 Pigtail, 3.15 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse, 6.3x32
    VIEW PRODUCT
    20 Weeks
    100
    $0.844
    300
    $0.686
    1,000
    $0.655
    2,500
    $0.601
    5,000
    $0.541
    8020.5074
    Data Sheet
    8020.5074 Schurter
    SHF 6.3x32, 4 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    20 Weeks
    50
    $0.6904
    250
    $0.5790
    1,000
    $0.5358
    2,500
    $0.5056
    5,000
    $0.4425
