Panasonic OS-CON™ Conductive Polymer Aluminum Solid Capacitors

Available in SMT and THT, OS-CON™ capacitors utilize aluminum and a highly conductive polymer material to offer low ESR, excellent noise reduction, and high ripple current. OS-CON™ capacitors are characterized by a long life and realize minimal ESR change offering reliable performance throughout the entire rated temperature range.

  • Wide Voltage Range: 2V to 100V
  • Large Capacitance: 2,700μF to 3.3μF
  • Low ESR: as low as 5mΩ
  • High Ripple Current Rating: up to 7.5Arms
  • Wide Operating Temperature Range: (-55°C to +105°C) or (-55°C to +125°C)
  • Long Life: up to 5,000h
See More
Show products manufactured by Passive & Specialty Components by Panasonic
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support
Product Guides

1570 PRODUCT RESULTS FOR ""

Filter Results

1570 Products

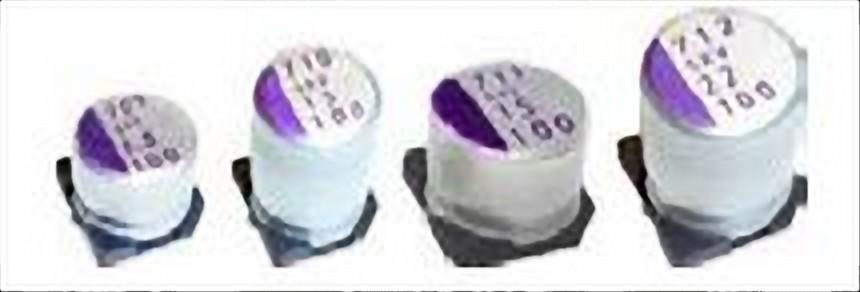

    100SXV15M
    Data Sheet
    100SXV15M Panasonic
    Cap Aluminum Polymer 15uF 100VDC 20% (8 X 11.9mm) SMD 0.04 Ohm 2350mA 1000h 125°C T/R
    VIEW PRODUCT
    In Stock: 1200
    Can Ship immediately
    400
    $1.22
    800
    $1.18
    1,200
    $1.17
    2,800
    $1.14
    5,200
    $1.13
    100SXV15M
    Data Sheet
    100SXV15M Panasonic
    Cap Aluminum Polymer 15uF 100VDC 20% (8 X 11.9mm) SMD 0.04 Ohm 2350mA 1000h 125°C T/R
    VIEW PRODUCT
    In Stock: 1200
    Can Ship immediately
    400
    $1.22
    800
    $1.18
    1,200
    $1.17
    2,800
    $1.14
    5,200
    $1.13
    10SEP270M
    Data Sheet
    10SEP270M Panasonic
    Cap Aluminum Polymer 270uF 10VDC 20% (10 X 8mm) Radial 5mm 0.025 Ohm 3700mA 3000h 105ƒA€A°C T/R
    VIEW PRODUCT
    In Stock: 1000
    Can Ship immediately
    200
    $0.774
    400
    $0.723
    1,000
    $0.641
    2,600
    $0.589
    5,000
    $0.561
    10SEP270M
    Data Sheet
    10SEP270M Panasonic
    Cap Aluminum Polymer 270uF 10VDC 20% (10 X 8mm) Radial 5mm 0.025 Ohm 3700mA 3000h 105ƒA€A°C T/R
    VIEW PRODUCT
    In Stock: 1000
    Can Ship immediately
    200
    $0.774
    400
    $0.723
    1,000
    $0.641
    2,600
    $0.589
    5,000
    $0.561
    16SEPC270MX
    Data Sheet
    16SEPC270MX Panasonic
    Cap Aluminum Polymer 270uF 16VDC 20%( 8 X 9mm) Radial 3.5mm 0.01 Ohm 5000mA 5000h 105C Bulk
    VIEW PRODUCT
    In Stock: 900
    Can Ship immediately
    200
    $0.6726
    400
    $0.6409
    1,000
    $0.5727
    2,600
    $0.5298
    5,000
    $0.5005
    16SEPC270MX
    Data Sheet
    16SEPC270MX Panasonic
    Cap Aluminum Polymer 270uF 16VDC 20%( 8 X 9mm) Radial 3.5mm 0.01 Ohm 5000mA 5000h 105C Bulk
    VIEW PRODUCT
    In Stock: 900
    Can Ship immediately
    200
    $0.6726
    400
    $0.6409
    1,000
    $0.5727
    2,600
    $0.5298
    5,000
    $0.5005
    16SVPF1000M
    Data Sheet
    16SVPF1000M Panasonic
    The 16SVPF1000M is a surface-mount conductive polymer aluminum solid capacitor with a capacitance of 1000 μF and ...
    VIEW PRODUCT
    On Order: 9600
    Ships 6/10/27
    400
    $0.916
    800
    $0.907
    1,200
    $0.905
    2,800
    $0.903
    5,200
    $0.901
    16SVPF1000M
    Data Sheet
    16SVPF1000M Panasonic
    The 16SVPF1000M is a surface-mount conductive polymer aluminum solid capacitor with a capacitance of 1000 μF and ...
    VIEW PRODUCT
    On Order: 9600
    Ships 6/10/27
    400
    $0.916
    800
    $0.907
    1,200
    $0.905
    2,800
    $0.903
    5,200
    $0.901

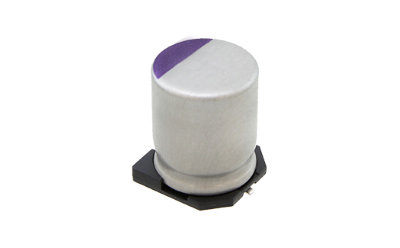

    16SVPF270M
    Data Sheet
    16SVPF270M Panasonic
    Cap Aluminum Polymer 270uF 16VDC 20% (8 X 6.9mm) SMD 0.022 Ohm 3300mA 5000h 105A°C T/R
    VIEW PRODUCT
    On Order: 2000
    Ships 8/4/27
    1,000
    $0.696
    3,000
    $0.674
    5,000
    $0.672
    8,000
    $0.670
    10,000
    $0.669
    16SVPF270M
    Data Sheet
    16SVPF270M Panasonic
    Cap Aluminum Polymer 270uF 16VDC 20% (8 X 6.9mm) SMD 0.022 Ohm 3300mA 5000h 105A°C T/R
    VIEW PRODUCT
    On Order: 2000
    Ships 8/4/27
    1,000
    $0.696
    3,000
    $0.674
    5,000
    $0.672
    8,000
    $0.670
    10,000
    $0.669
